SATA M.2 Solid State Drives

MyDigitalSSD M.2 NGFF (Next Generation Form Factor) solid state drives are space saving high-speed non-volatile storage solutions to be used in upcoming high performance laptops.

Smaller, lighter, and consuming less power - M.2 drives maximize performance and usage in mobile devices when used as a cache drive (in tandem with a HDD) and offer enough storage space to load an operating system as a bootable drive for embedded applications, ultrabooks, and next generation notebooks.

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.


Quick Navigation



MyDigitalSSD Super Boot 2 80mm 2280 SATA III/6G M.2 NGFF SSD

Details

Super Boot 2 | SB2 | 80mm (2280) M.2 NGFF | PHISON S11 Controller

Super Boot 2: Turn Minutes Into Seconds

MyDigitalSSD Super Boot 2 solid state drives guarantee your computer is ready when you need it. SB2 SSDs eliminate long boot times and slow loading applications while boosting overall performance and reliability for an improved everyday user experience.

Pairing Toshiba TLC Flash and Phison's S11 controller, these easy-to-install 80mm SATA III (6Gb/s) 2280 M.2 SSDs unleash your computer's full potential; delivering sequential read speeds up to 560MB/s for near-instant access to files and apps when clicked, increasing productivity up to 70X with faster multitasking and gaming load times.

Super Boot 2 2280 M.2 SSDs are ideal upgrade solutions for the latest ultra-thin laptops (Ultrabooks), NUC Mini PCs, and desktop workstations - PC or Mac. Like all MyDigitalSSD drives, SB2 SSDs run cool, silent, and energy-efficient; extending battery life in notebooks while better handling shock and vibration to keep your data safe on the go.

Why wait any longer? Switch to a Super Boot 2 and take your time back!

Features

  • Unequaled price to performance ratio
  • PHISON PS3111 controller
  • Toshiba TLC Toggle flash
  • Easy installation
  • Large storage capacity
  • Low power consumption
  • High-speed SATA III 6Gb/s interface
  • Withstand extreme shock and vibration
  • Supports DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • SmartZIP™
  • RAID, SMART, and TRIM support
  • 3-year warranty

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD SB2 80mm SATA 6G M.2 NGFF SSD

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 10 Pro 64-bit / SATA M.2 Slot. Driver: storahci.

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

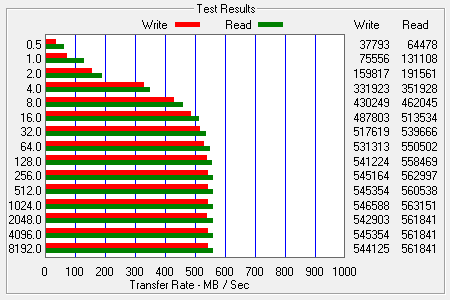

480GB (512GB)

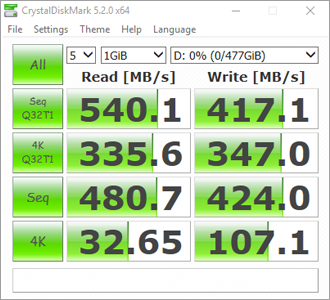

CrystalDiskMark Bench Results     ATTO Bench Results

240GB (256GB)

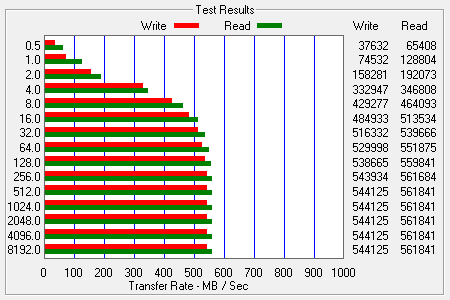

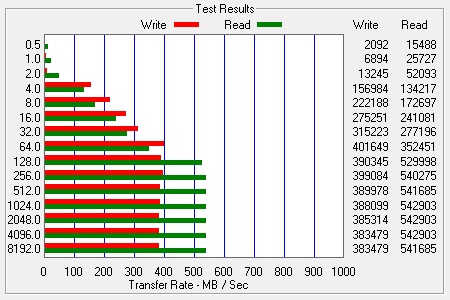

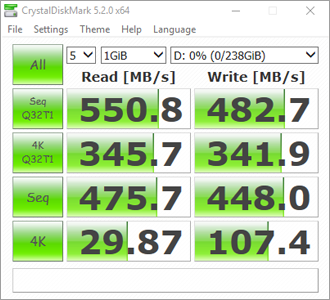

CrystalDiskMark Bench Results     ATTO Bench Results

120GB (128GB)

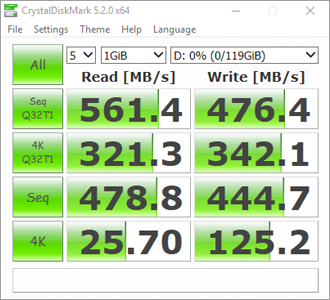

CrystalDiskMark Bench Results     ATTO Bench Results

Resources

Specifications

Capacity : SKU
120GB (128GB) : MDM280-SB2-0128
240GB (256GB) : MDM280-SB2-0256
480GB (512GB) : MDM280-SB2-0512
960GB (1TB) : MDM280-SB2-1T
Interface: SATA III 6.0Gb/s
Form Factor: M.2 NGFF
NAND Flash: Toshiba TLC Toggle NAND
Controller: Phison S11 (PS3111)
Max Read Speed: 560MB/sec (ATTO)
Max Write Speed: 500MB/sec (ATTO)
4K Random Read: 35MB/sec (CDM)
4K Random Write: 130MB/sec (CDM)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Humidity: RH = 90% under 40°C
Shock: 1500G/0.5ms
Vibration: 80Hz~2000Hz/20G
Operating Voltage: 3.3V
Power Consumption Active: < 1,850 mW
Power Consumption Idle: < 280 mW
Power Consumption DEVSLP: < 5 mW
Dimensions: 80 x 22 x 1mm
Weight: < 5g
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
NCQ: Up to 32 commands
MTBF: >2,000,000 hours
Advanced Flash Management: Static and Dynamic Wear Leveling
Bad Block Management
TRIM
SMART
Over-Provision
Firmware Update
SmartZIP™
Compliance: RoHS, FCC, CE, BSMI
Warranty: 3 Year

Return to top



MyDigitalSSD Super Boot 2 42mm 2242 SATA III/6G M.2 NGFF SSD

Details

Super Boot 2 | SB2 | 42mm (2242) M.2 NGFF | PHISON S11 Controller

Super Boot 2: Turn Minutes Into Seconds

MyDigitalSSD Super Boot 2 solid state drives guarantee your computer is ready when you need it. SB2 SSDs eliminate long boot times and slow loading applications while boosting overall performance and reliability for an improved everyday user experience.

Pairing Toshiba TLC Flash and Phison's S11 controller, these easy-to-install 42mm SATA III (6Gb/s) 2242 M.2 SSDs unleash your computer's full potential; delivering sequential read speeds up to 560MB/s for near-instant access to files and apps when clicked, increasing productivity up to 70X with faster multitasking and gaming load times.

Super Boot 2 2242 M.2 SSDs are ideal upgrade solutions for the latest ultra-thin laptops (Ultrabooks), Notebooks, ChromeBooks, Chromebox/NUC Mini PCs, and desktop workstations - PC or Mac. Like all MyDigitalSSD drives, SB2 SSDs run cool, silent, and energy-efficient; extending battery life in notebooks while better handling shock and vibration to keep your data safe on the go.

Why wait any longer? Switch to a Super Boot 2 and take your time back!

Features

  • Unequaled price to performance ratio
  • PHISON PS3111 controller
  • Toshiba TLC Toggle flash
  • Easy installation
  • Large storage capacity
  • Low power consumption
  • High-speed SATA III 6Gb/s interface
  • Withstand extreme shock and vibration
  • Supports DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • SmartZIP™
  • RAID, SMART, and TRIM support
  • 3-year warranty

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD SB2 42mm SATA 6G M.2 NGFF SSD

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 10 Pro 64-bit / SATA M.2 Slot. Driver: storahci.

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

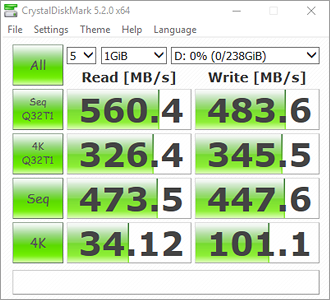

240GB (256GB)

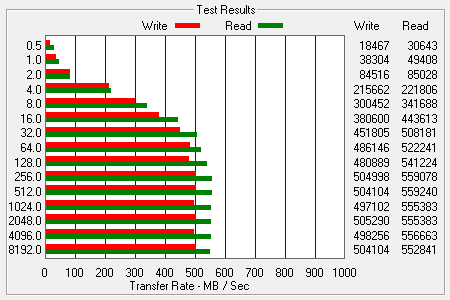

CrystalDiskMark Bench Results     ATTO Bench Results

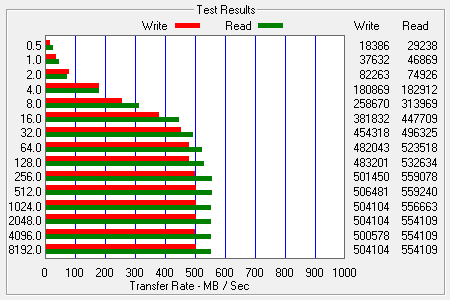

120GB (128GB)

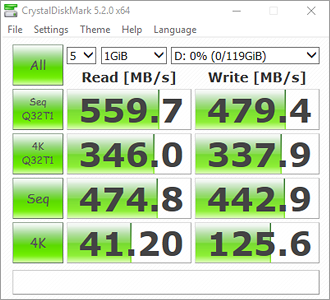

CrystalDiskMark Bench Results     ATTO Bench Results

Resources

Specifications

Capacity : SKU
7GB (8GB) : MDM242-SB2-0008 (OEM)
15GB (16GB) : MDM242-SB2-0016 (OEM)
30GB (32GB) : MDM242-SB2-0032 (OEM)
60GB (64GB) : MDM242-SB2-0064 (OEM)
120GB (128GB) : MDM242-SB2-0128
240GB (256GB) : MDM242-SB2-0256
480GB (512GB) : MDM242-SB2-0512
Interface: SATA III 6.0Gb/s
Form Factor: M.2 NGFF
NAND Flash: 8GB-64GB: Toshiba MLC Toggle NAND
128GB & 256GB: Toshiba TLC Toggle NAND
Controller: Phison S11 (PS3111)
Max Read Speed: 560MB/sec (ATTO)
Max Write Speed: 500MB/sec (ATTO)
4K Random Read: 42MB/sec (CDM)
4K Random Write: 130MB/sec (CDM)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Humidity: RH = 90% under 40°C
Shock: 1500G/0.5ms
Vibration: 80Hz~2000Hz/20G
Operating Voltage: 3.3V
Power Consumption Active: 8GB-64GB: < 1,740 mW
128GB & 256GB: < 1,780 mW
Power Consumption Idle: 8GB-64GB: < 260 mW
128GB & 256GB: < 270 mW
Power Consumption DEVSLP: < 5 mW
Dimensions: 42 x 22 x 1mm
Weight: < 5g
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
NCQ: Up to 32 commands
MTBF: >2,000,000 hours
Advanced Flash Management: Static and Dynamic Wear Leveling
Bad Block Management
TRIM
SMART
Over-Provision
Firmware Update
SmartZIP™
Compliance: RoHS, FCC, CE, BSMI
Warranty: 3 Year

Return to top



MyDigitalSSD Bullet Proof 5 Eco 80mm 2280 SATA III/6G M.2 NGFF SSD

Details

Bullet Proof 5 Eco | BP5e | 80mm (2280) M.2 NGFF | PHISON S10 Controller

MyDigitalSSD Bullet Proof 5 Eco (BP5e) series SATA III (6G) M.2 NGFF solid state drives are value upgrade solutions for Notebook/Ultrabook/Chromebook/NUC Mini PC/Desktop users, of all experience levels, who demand more from their device.

Whether it's breathing new life into a sluggish device or rounding out your DIY setup with a high-performance system drive, the BP5e has what you're looking for. Reduce OS load times to access your files faster, stream HD video without interruption, effortlessly run graphic intensive programs and games, and more - all while checking your email.

Upgrade to a BP5e today and see what you've been missing.

Features

  • Unequaled price to performance ratio
  • PHISON S10 controller
  • Toshiba TLC Toggle NAND Flash
  • Large storage capacity
  • Easy installation
  • Improve boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Supports DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • 3-year warranty

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD BP5e 80mm SATA 6G M.2 NGFF SSD

Where to Buy*

Buy this product at Amazon.com

USA

* Reseller prices may vary.

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 7 Ultimate 64-Bit / MyDigitalSSD M.2 to 2.5 inch Adapter. Driver iAStor.

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

120GB

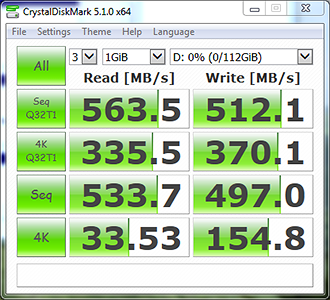

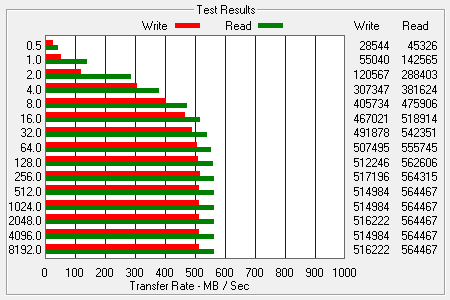

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

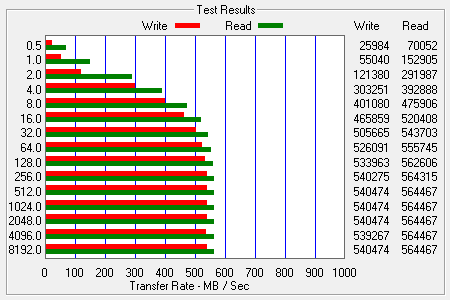

240GB

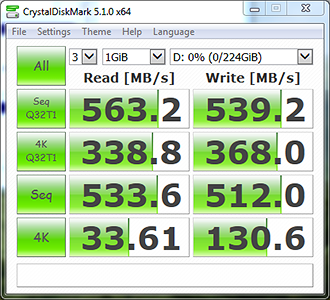

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

4800GB

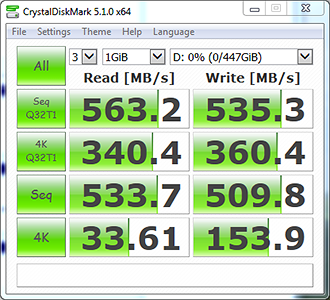

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

Reviews & Awards

Resources

Specifications

Capacity : SKU
120GB : MDM280-BP5e-0128G
240GB : MDM280-BP5e-0256G
480GB : MDM280-BP5e-0512G
960GB : MDM280-BP5e-1TB
Interface: SATA III 6.0Gb/s
Form Factor: M.2 NGFF
NAND Flash: Toshiba TLC Toggle NAND Flash
Controller: Phison S10 Controller (PS3110)
Max Read Speed: 565MB/sec (ATTO)
Max Write Speed: 545MB/sec (ATTO)
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Access Time: 0.1 ms
Operating Voltage: 3.3V
Idle: < 0.5W
Active: < 0.9W
Dimensions: 80 x 22 x 1mm
Weight: < 5g
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
MTBF: >1,000,000 hours
Advanced Flash Management: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Compliance: RoHS, FCC, CE, BSMI
Warranty: 3 Year

Return to top



MyDigitalSSD Bullet Proof 5 80mm 2280 SATA III/6G M.2 NGFF SSD

Details

Bullet Proof 5 | BP5 | 80mm (2280) M.2 NGFF | PHISON S10 Controller

MyDigitalSSD Bullet Proof 5 (BP5) series SATA III (6G) M.2 NGFF solid state drives are the quintessential upgrade for Notebook/Ultrabook/Chromebook/NUC Mini PC/Desktop users, of all experience levels, who demand more from their device.

Whether it's breathing new life into a sluggish device or rounding out your DIY setup with a high-performance system drive, the BP5 has what you're looking for. Reduce OS load times to access your files faster, stream HD video without interruption, effortlessly run graphic intensive programs and games, and more - all while checking your email.

Upgrade to a BP5 today and get the ultimate user experience.

Features

  • Unequaled price to performance ratio
  • PHISON S10 controller
  • Micron MLC Sync NAND flash
  • Large storage capacity
  • Easy installation
  • Improve boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Supports DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • 5-year warranty

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

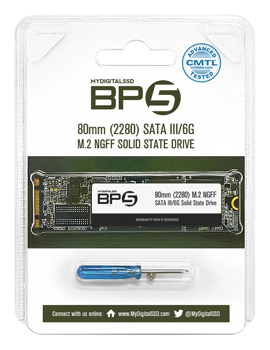

MyDigitalSSD BP5 80mm SATA 6G M.2 NGFF SSD

Performance Testing

Test Environment: Lenovo ThinkPad X220 using a 2.5" SATA 6G Bay w/ M.2 NGFF to 2.5" Adapter | Windows 8 | AHCI mode

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

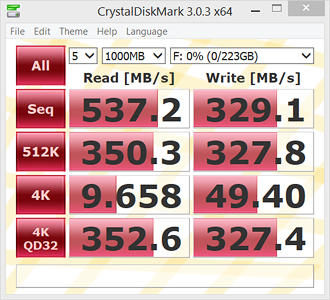

240GB

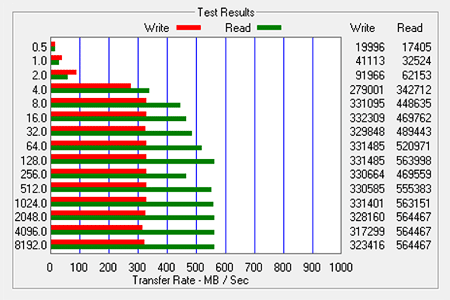

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

480GB

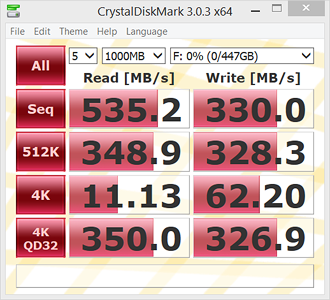

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

Testing & Certification

CMTL Advanced Tested on Intel® NUC

MyDigitalSSD BP5 80mm (2280) M.2 NGFF SSDs have been CMTL Advanced Tested and confirmed to be compatible with Intel® NUC Models:

NUC5i3RYB / NUC5i3RYK / NUC5i3RYH / NUC5i5RYB / NUC5i5RYK / NUC5i5RYH / NUC5i3MYBE / NUC5i3MYHE / NUC5i5MYBE / NUC5i5MYHE

Resources

Specifications

Capacity : SKU
120GB : MDM280-BP5-0128G
240GB : MDM280-BP5-0256G
480GB : MDM280-BP5-0512G
Interface: SATA III 6.0Gb/s
Form Factor: M.2 NGFF
NAND Flash: Micron MLC Sync NAND Flash
Controller: Phison S10 Controller (PS3110)
Max Read Speed: 565MB/sec (ATTO)
Max Write Speed: 335MB/sec (ATTO)
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Access Time: 0.1 ms
Operating Voltage: 3.3V
Idle: < 0.5W
Active: < 0.9W
Dimensions: 80 x 22 x 1mm
Weight: < 5g
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
MTBF: >1,000,000 hours
Advanced Flash Management: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Compliance: RoHS, FCC, CE, BSMI
Warranty: 5 Year

Return to top




MyDigitalSSD Super Boot Eco 42mm 2242 SATA III/6G M.2 NGFF SSD

Details

Super Boot Eco | 42mm (2242) M.2 NGFF | SATA III / 6G | PHISON S9 Controller

MyDigitalSSD Super Boot Eco (SBe) solid state drives feature the PHISON S9 controller and Micron MLC Sync NAND Flash to super charge today's UltraBooks, Notebooks, ChromeBooks, Chromebox/NUC Mini PCs, and Desktop PCs.

SBe SSDs are easy to install upgrades that provide users increased performance and efficiency with blazing fast Read/Write speeds while minimizing startup and application load times. Backwards compatible with SATA II applications; let the SBe SATA III 6.0Gb/s interface increase your productivity up to 70X in any device with an available SATA 42mm (2242) M.2 NGFF port.

What are you waiting for? Unleash the true potential of your device today with extended performance endurance, prolonged drive life, reliability, and low power consumption - all at a wallet friendly price thanks to MyDigitalSSD.

Highlights

  • Unequaled price to performance ratio
  • Micron MLC Sync NAND Flash
  • Large storage capacity
  • Easy installation
  • Improve boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • Two year replacement warranty
MyDigitalSSD Super Boot Eco 42mm SATA 6G M.2 NGFF SSD

Performance Testing

Test Environment: Lenovo IdeaPad Y510p, 2.4 GHz Intel Core i7-4700MQ, 8 GB DDR3, Windows 8 64-bit, NVIDIA GeForce GT750M with 1TB HDD and open M.2 slot.

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

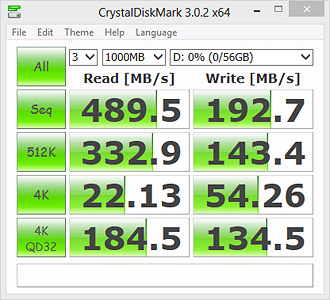

64GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

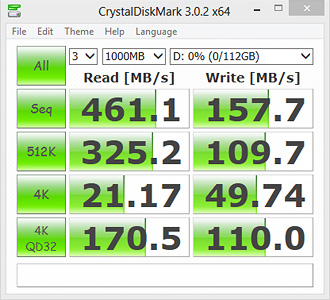

128GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

Testing & Certification

CMTL Advanced Tested on Intel® NUC

MyDigitalSSD SBe 42mm (2242) M.2 NGFF SSDs have been CMTL Advanced Tested and confirmed to be compatible with Intel® NUC Models:

NUC5i3RYB / NUC5i3RYK / NUC5i3RYH / NUC5i5RYB / NUC5i5RYK / NUC5i5RYH / NUC5i3MYBE / NUC5i3MYHE / NUC5i5MYBE / NUC5i5MYHE

Firmware Updates

Resources

Specifications

Capacity : SKU
64GB : MDM242-SBe-064
128GB : MDM242-SBe-128
Interface: SATA III 6.0Gb/s
Form Factor: M.2 NGFF
NAND Flash: Micron MLC Sync NAND Flash
Controller: Phison S9 Series (PS3109)
Max Read Rate: 530MB/sec (ATTO)
Max Write Rate: 440MB/sec (ATTO)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Operating Voltage: 3.3V ± 5%
Idle: < 0.5W
Active: < 0.9W
Dimensions: 42mm x 22mm x 1mm
Weight: < 5g
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
MTBF: >2,000,000 hours
Advanced Flash Management: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Compliance: RoHS, FCC, CE, BSMI
Warranty: 2 Year

Return to top




MyDigitalSSD Super Boot Drive 80mm 2280 SATA III/6G M.2 NGFF SSD

Details

Super Boot Drive | 80mm (2280) M.2 NGFF | SATA III (6G) | PHISON S9 Controller

Your time is valuable. MyDigitalSSD Super Boot Drive helps you make the most of it!

Featuring the industry leading PHISON S9 controller and Toshiba A19nm MLC Toggle NAND Flash, MyDigitalSSD Super Boot Drive SSDs are easy to install upgrades that provide users increased efficiency with blazing fast Read/Write speeds while minimizing startup and application load times in any device with a 80mm (2280) M.2 NGFF slot - all at a wallet friendly price.

Looking for a boost without sacrificing storage space? MyDigitalSSD Super Boot Drives allow high speeds with a backwards compatible SATA III 6.0Gb/s interface for unmatched performance compared to similar low density drives when used by itself or alongside a spinning hard drive.

Give your NUC, notebook, tablet, Ultrabook, Chromebook/Box, or hybrid PC (a laptop or desktop with mSATA and SATA ports) the upgrade it deserves, give it a Super Boot Drive SSD and discover what you've been missing.



MyDigitalSSD Super Boot Drive 80mm SATA 6G M.2 NGFF SSD

Performance Testing

Test Environment: Lenovo ThinkPad X220 using a 2.5" SATA 6G Bay w/ M.2 NGFF to 2.5" Adapter | Windows 8 | AHCI mode

256GB

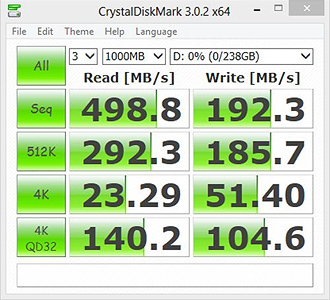

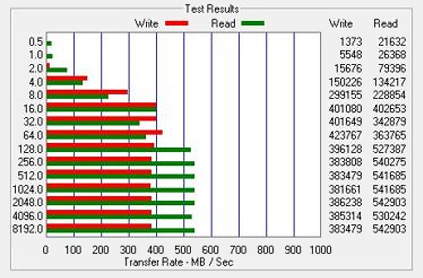

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

Firmware Updates

Resources

Specifications

Capacity : SKU
256GB : MDM280-SB-256
Interface: SATA III (6G)
Form Factor: M.2 NGFF
Controller: Phison S9 Series (PS3109)
NAND Flash: Toshiba A19nm MLC Toggle NAND Flash
Dimensions: 80 x 22 x 1mm
Max Read Rate: 545MB/sec (ATTO)
Max Write Rate: 430MB/sec (ATTO)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Weight: < 5g
Idle: < 0.5W (50 mA)
Active: < 0.9W (230 mA Write, 170 mA Read)
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
MTBF: >1,000,000 hours
Features: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
Warranty: 3 Year

Return to top



MyDigitalSSD Super Boot Drive 42mm 2242 SATA III/6G M.2 NGFF SSD

Details

Super Boot Drive | 42mm (2242) M.2 NGFF | SATA III (6G) | PHISON S9 Controller

Your time is valuable. MyDigitalSSD Super Boot Drive helps you make the most of it!

Featuring the industry leading PHISON S9 controller and Toshiba A19nm MLC Toggle NAND Flash, MyDigitalSSD Super Boot Drive SSDs are easy to install upgrades that provide users increased efficiency with blazing fast Read/Write speeds while minimizing startup and application load times in any device with a 42mm (2242) M.2 NGFF slot - all at a wallet friendly price.

Looking for a boost without sacrificing storage space? MyDigitalSSD Super Boot Drives allow high speeds with a backwards compatible SATA III 6.0Gb/s interface for unmatched performance compared to similar low density drives when used by itself or alongside a spinning hard drive.

Give your NUC, notebook, tablet, Ultrabook, Chromebook/Box, or hybrid PC (a laptop or desktop with mSATA and SATA ports) the upgrade it deserves, give it a Super Boot Drive SSD and discover what you've been missing.



MyDigitalSSD Super Boot Drive 42mm SATA 6G M.2 NGFF SSD

Performance Testing

Test Environment:
Lenovo IdeaPad Y510p, 2.4 GHz Intel Core i7-4700MQ, 8 GB DDR3, Windows 8 64-bit, NVIDIA GeForce GT750M with 1TB HDD and open M.2 slot.

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

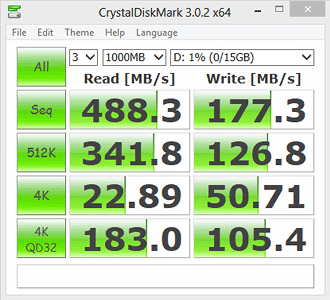

16GB

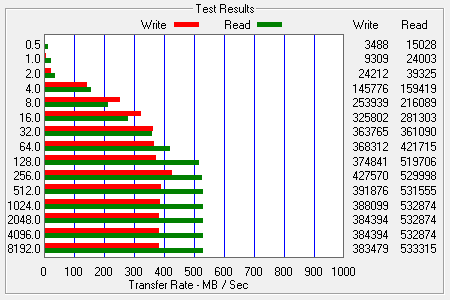

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

32GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

64GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

128GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

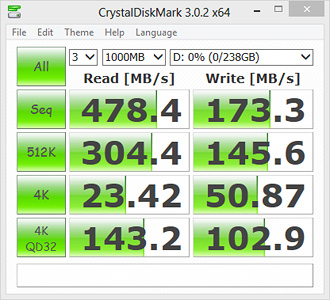

256GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

Reviews & Awards

Firmware Updates

Resources

Specifications

Capacity : SKU
8GB : MDM242-SB-008
16GB : MDM242-SB-016
32GB : MDM242-SB-032
64GB : MDM242-SB-064
128GB : MDM242-SB-128
256GB : MDM242-SB-256
Interface: SATA III (6G)
Form Factor: M.2 NGFF
Controller: Phison S9 Series (PS3109)
NAND Flash: Toshiba A19nm MLC Toggle NAND Flash
Max Read Rate: 545MB/sec (ATTO)
Max Write Rate: 410MB/sec (ATTO)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Dimensions: 42 x 22 x 1mm
Weight: < 5g
Idle: < 0.5W (50 mA)
Active: < 0.9W (230 mA Write, 170 mA Read)
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
MTBF: >1,000,000 hours
Features: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
Warranty: 3 Year

Return to top

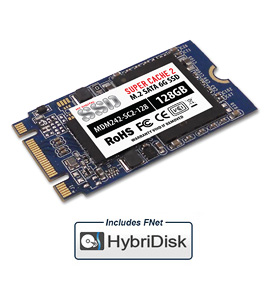

MyDigitalSSD Super Cache 2 42mm SATA III/6G 2242 M.2 NGFF SSD

Details

Super Cache 2 | 42mm SATA III (6G) M.2 2242 NGFF SSD | PHISON S9 Controller | FNet HybriDisk Software License Code

MyDigitalSSD Super Cache 2 SATA III/6G M.2 Next Generation Form Factor (NGFF) solid state drives are designed to boost performance in today's compact size ultrabooks, notebooks, and tablet PCs while using less power to preserve battery life on the go.

Smaller and thinner than their mSATA counterparts, Super Cache 2 M.2 NGFF SSDs maximize mobile device applications performance when used in tandem as a cache drive with a Hard Disk Drive (HDD) in any mobile PC or NAS appliance that has an available M.2 slot.

Featuring low density high queue depth read/write speeds of the PHISON S9 controller with a SATA 6Gb/s interface, these space saving drives provide sufficient storage space for loading an OS to alternatively serve as a bootable drive without having to spend big money on a high capacity SSD main drive with similar performance. The Super Cache 2 fills the void of an affordable high speed/high capacity SSD that can match the speed of high end SSDs, making them the perfect solution for next generation mobile computing.


Why buy a Super Cache 2 SSD?

Easy to Install - Upgrade your system without all of the confusion, the Super Cache 2 SSD is an upgrade for any novice user to install. Simply plug it in, boot up, and run the free FNet HybriDisk cache software provided (or a cache software of your choosing) to get started. Experienced users may alternatively elect to use the SSD as a boot drive.

Improved Performance - Shortly after install, your most frequently used programs, files, and applications will be cached. The more you use your computer the faster it will go.

Improved Efficiency - Because the files and apps you use will be located and retrieved from the Super Cache 2 SSD, your spinning hard drive will require less use - resulting in reduced noise and heat while improving battery life. This leads to a better computer user experience that provides increased productivity using less time and energy.

No Need to Sacrifice Storage for Speed - Using a Super Cache 2 SSD as a cache or boot drive working with a hard drive gives users the best of both worlds, a high-speed SSD with the storage capacity of a HDD.


About FNet HybriDisk Software

As a bonus, each MyDigitalSSD Super Cache 2 drive includes a free license code for FNet HybriDisk cache software to increase your overall PC speed up to 5X!

FNet HybriDisk is a easy-to-use low maintenance cache software that increases the overall performance of your computer by using a low-capacity SSD as a high-performance "cache" for your existing HDD. HybriDisk uses intelligent caching algorithms to continuously monitor the way you are using applications and data, and automatically keeps all of your "hot" data ready on the SSD for optimal performance.

FNet HybriDisk Features

  • Solid state hybrid drive delivers SSD-like performance with hard drive capacity options.
  • FNet Smart-Swap Technology (SST) customizes performance by aligning to user needs for overall improved system response.
  • Reduces boot times by up to 60%+.
  • Smart and real-time caching of the applications and data that the user needs.
  • • Easy to install, use and maintain.
  • Selectable quantity of SSD storage to be used.
  • Maintains full safety of all data which when SSD failure or removal, as well as un-normal shutdowns resulting from power outages.
  • Smart, invisibly and silently in the background, with user-friendly interface.

Click here to download FNet HybriDisk Software from MyDigitalDiscount.com

Note: FNet HybriDisk is an optional software, to be used exclusively with MyDigitalSSD Super Cache 2 SSDs. FNet HybriDisk will not work if used in the same capacity on other solid state drives. Super Cache 2 SSDs are compatible with all cache solutions and can alternatively be used as a boot drive for operating systems or important programs.

MyDigitalSSD Super Cache 2 42mm SATA 6G M.2 NGFF SSD

Performance Testing

Test Environment:
Lenovo IdeaPad Y510p, 2.4 GHz Intel Core i7-4700MQ, 8 GB DDR3, Windows 8 64-bit, NVIDIA GeForce GT750M with 1TB HDD and open M.2 slot.

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

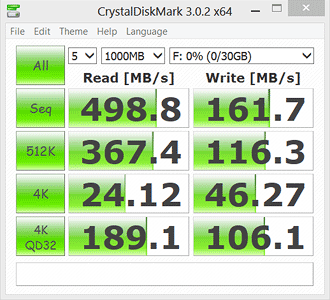

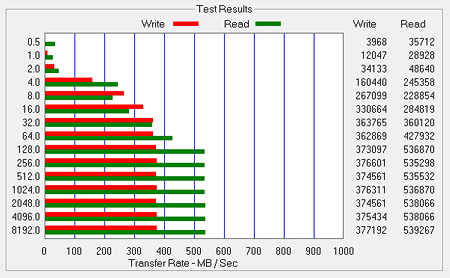

32GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

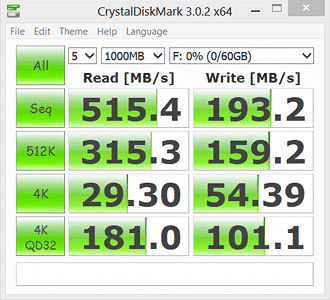

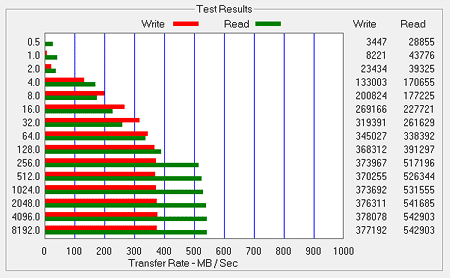

64GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

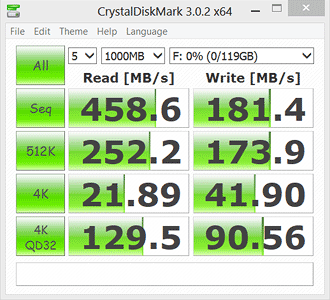

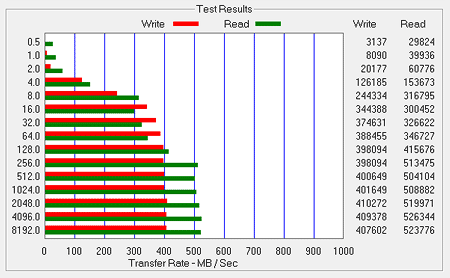

128GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

Reviews & Awards

Firmware Updates

Resources

Specifications

Capacity : SKU
24GB : MDM242-SC2-024
32GB : MDM242-SC2-032
64GB : MDM242-SC2-064
128GB : MDM242-SC2-128
Interface: SATA III (6G)
Form Factor: M.2 NGFF
Controller: Phison S9 Series (PS3109)
NAND Flash: Toshiba A19nm MLC Toggle NAND Flash
Max Read Rate: 545MB/sec (ATTO)
Max Write Rate: 410MB/sec (ATTO)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Dimensions: 42 x 22 x 1mm
Weight: < 5g
Input Voltage: 3.3V
Idle: < 0.5W (50 mA)
Active: < 0.9W (230 mA Write, 170 mA Read)
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
MTBF: >1,000,000 hours
Features: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
Warranty: 3 Year

Return to top
