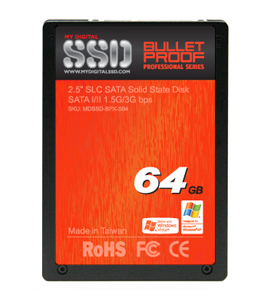

2.5" SATA Solid State Drives

Solid state drive upgrades are the now and later of data storage technology. Get ahead of the game with MyDigitalSSD easy-to-install replacements for traditional spinning hard drives for any laptop notebook, netbook, or desktops.

With read/write speeds that border on revolutionary, MyDigitalSSD 2.5" SATA SSDs are available in SLC and MLC flash, with storage capacities up to 512GB, and support Windows, Linux, and Mac operating systems.

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.


Quick Navigation



MyDigitalSSD Super Boot 2 Slim 7 Series 2.5" SATA III (6G) SSD

Details

Super Boot 2 | SB2 | 2.5" | 7mm | SATA III (6G) | PHISON S11 Controller

Super Boot 2: Turn Minutes Into Seconds

MyDigitalSSD Super Boot 2 solid state drives guarantee your computer is ready when you need it. SB2 SSDs eliminate long boot times and slow loading applications while boosting overall performance and reliability for an improved everyday user experience.

Pairing Toshiba TLC Flash and Phison's S11 controller, these easy-to-install 2.5-inch SATA III (6Gb/s) SSDs unleash your computer's full potential; delivering sequential read speeds up to 560MB/s for near-instant access to files and apps when clicked, increasing productivity up to 70X with faster multitasking and gaming load times.

Super Boot 2 SSDs are also backward compatible with SATA II (3Gb/s) systems making them ideal upgrades for older PCs with spinning hard drives. With no moving parts, SB2 SSDs run cool, silent, and energy-efficient; extending battery life in notebooks while better handling shock and vibration to keep your data safe on the go.

Like all MyDigitalSSD Slim 7 drives, the Super Boot 2 features a low-profile 7mm design with a 9.5mm drive screw alignment for use in a wide range of systems; from desktop workstations to the latest ultra-thin laptops (Ultrabooks) - PC or Mac.

Why wait any longer? Switch to a Super Boot 2 and take your time back!

Features

  • Unequaled price to performance ratio
  • High-performance, full capacity SSD
  • PHISON PS3111 controller
  • Toshiba TLC Toggle flash
  • Low-profile 7mm case design
  • Large storage capacity
  • Low power consumption
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Supports DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • SmartZIP™
  • RAID, SMART, and TRIM support
  • 3-year warranty

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD Super Boot 2 Slim 7 Series 2.5 inch SATA III 6G SSD

Where to Buy

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 10 Pro 64-Bit / Driver iAStor

Firmware Version: 10.5

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

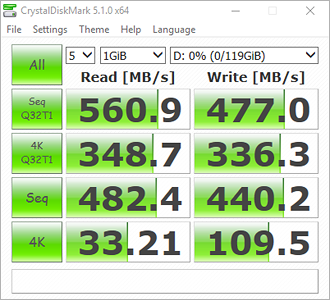

128GB

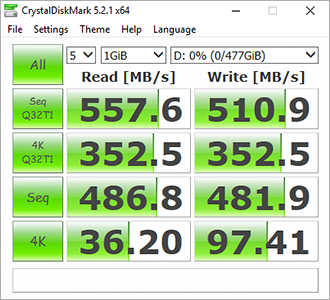

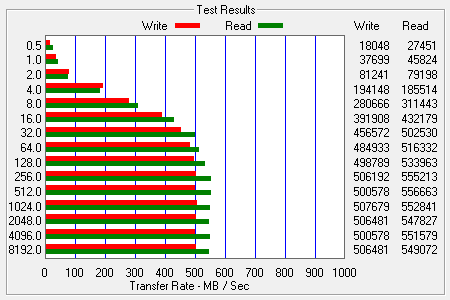

CrystalDiskMark Bench Results     ATTO Bench Results

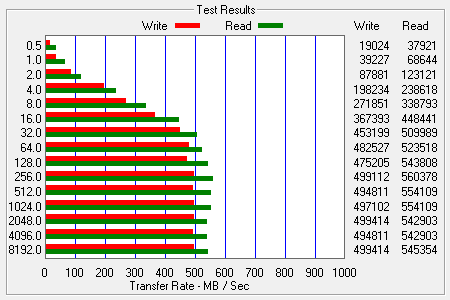

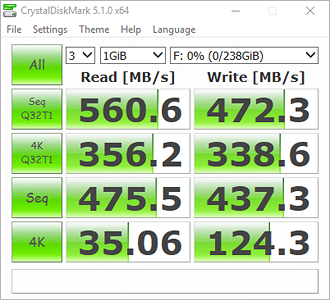

256GB

CrystalDiskMark Bench Results     ATTO Bench Results

Specifications

Capacity : SKU
128GB : MDS7-SB2-0128
256GB : MDS7-SB2-0256
512GB : MDS7-SB2-0512
Interface: SATA III 6.0Gb/s
Form Factor: 2.5 Inch
Flash: Toshiba TLC Toggle NAND
Controller: Phison S11 (PS3111)
Max Read Speed: Up to 560MB/s (ATTO)
Max Write Speed: Up to 500MB/s (ATTO)
4K Random Read: 35MB/sec (CDM)
4K Random Write: 125MB/sec (CDM)
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Humidity: RH = 90% under 40°C
Dimensions: 100 x 70 x 7mm
Weight: < 6g
Shock: 1500G/0.5ms
Vibration: 80Hz~2000Hz/20G
NCQ: Up to 32 commands
Input Voltage: 5V
Power Consumption Active: < 1,945 mW
Power Consumption Idle: < 315 mW
Power Consumption DEVSLP: < 5 mW
MTBF: >2,000,000 hours
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Compliance: RoHS, FCC, CE, BSMI
Warranty: 3 Year

Return to top

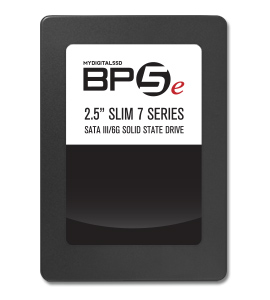

MyDigitalSSD BP5e Slim 7 Series 2.5" SATA III (6G) SSD

Details

Bullet Proof 5 Eco | BP5e | 2.5" | 7mm | SATA III (6G) | PHISON S10 Controller

MyDigitalSSD Bullet Proof 5 Eco (BP5e) Slim 7 Solid State Drives are value upgrade solutions for Notebook and Desktop users who demand more from their PC or Mac.

Featuring the PHISON S10 controller, these easy-to-install 2.5-inch SATA III 6Gb/s
SSDs offer performance well beyond their price tag with transfer speeds up to 565MB/s to improve boot up and application load times - boosting overall user productivity 70X!

BP5e Slim 7 drives have been over provisioned for improved Random Read/Write performance and IOPS, extended performance endurance to minimize sluggishness as the drive fills with data, prolonged drive life, reliability, and low power consumption.

Backwards compatible with SATA II applications; BP5e Slim 7 series drives feature a 9.5mm drive screw hole alignment to upgrade virtually any notebook with a 2.5" SATA port or SATA desktop workstation using a standard mounting adapter bracket - PC or Mac.

Features

  • Unequaled price to performance ratio
  • PHISON PS3110 controller
  • Toshiba TLC Toggle Flash
  • Large storage capacity
  • Easy installation
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • 3-year warranty

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD BP5e Slim 7 Series 2.5 inch SATA III 6G SSD

Where to Buy

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 7 Ultimate 64-Bit / Driver iAStor

Firmware Version: 2.2

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

120GB (128GB)

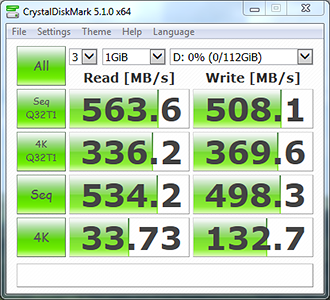

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

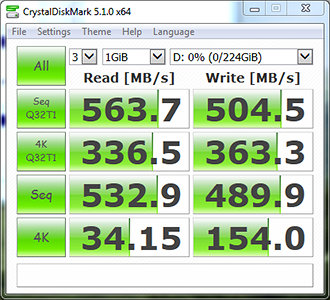

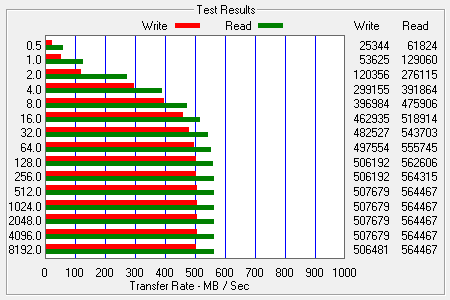

240GB (256GB)

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

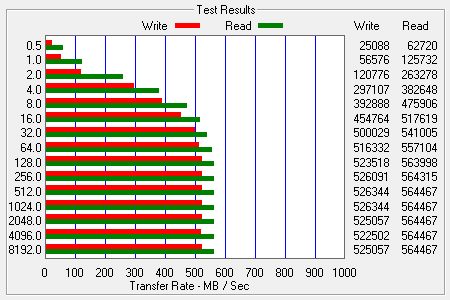

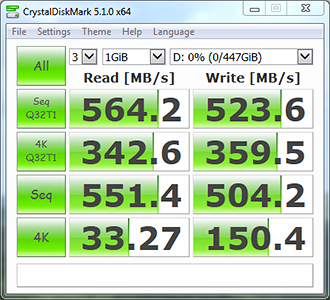

480GB (512GB)

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

960GB (1TB)

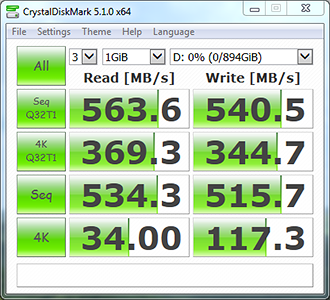

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

Reviews & Awards

Specifications

Capacity : SKU
120GB : MDS7-BP5e-0128G
240GB : MDS7-BP5e-0256G
480GB : MDS7-BP5e-0512G
960GB : MDS7-BP5e-1T
Controller: Phison S10
Form Factor: 2.5 Inch
Flash: Toshiba TLC Toggle Flash
Interface: SATA III (Serial ATA)
Max Read Speed: Up to 565MB/s
Max Write Speed: Up to 540MB/s
Access Time: 0.1 ms
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Humidity: RH = 95% under 55°C
Dimensions: 100 x 70 x 7mm
Weight: < 6g
Shock: 1500G/0.5ms
Vibration: 80-2000Hz/20G
NCQ: Up to 32 commands
Input Voltage: 5V ± 5%
Power Consumption Idle : < 0.5W
Power Consumption Active: < 0.9W
MTBF: >1,000,000 hours
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
ECC Scheme: Support up to 72bit ECC correct per 1K Byte data
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Warranty: 3 Year

Return to top



MyDigitalSSD BP4e Slim 7 Series 2.5" SATA III (6G) SSD

Details

BP4e | Bullet Proof 4 Eco | 2.5" | SATA III (6G) | PHISON S8 Controller

Unleash your device's true potential with the new MyDigitalSSD BP4e Slim 7 Series SSD, the latest in our award-winning line of Bullet Proof Eco solid state drive upgrades.

Featuring the PHISON S8 controller and Micron MLC Sync NAND Flash, these easy-to-install 2.5" SATA III 6Gb/s replacement upgrades eliminate the bottle-neck found in stock spinning hard drives to increase user productivity up to 70X.

Like the other offerings in our BP4e line, Slim 7 series drives have been over provisioned for improved Random Read/Write performance and IOPS, extended performance endurance to minimize sluggishness as the drive fills with data, prolonged drive life, reliability, and low power consumption - all at the unequaled price to performance ratio synonymous with MyDigitalSSD products.

Backwards compatible with SATA II applications; BP4e Slim 7 series drives feature a 9.5mm drive screw hole alignment to upgrade virtually any notebook with a 2.5" SATA port or SATA desktop workstation using a standard mounting adapter bracket - PC or Mac.

Highlights

  • Unequaled price to performance ratio
  • Micron MLC Sync NAND Flash
  • Large storage capacity
  • Easy installation
  • Improve boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • Two year replacement warranty

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD BP4e Slim 7 Series 2.5 inch SATA III 6G SSD

Where to Buy

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Performance Testing

Test Environment: Lenovo ThinkPad X220 using SATA 6G Bay | Windows 8 | AHCI mode

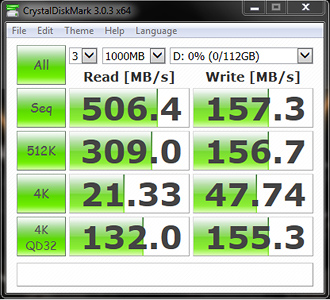

120GB

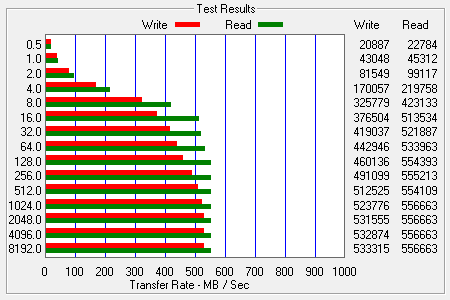

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

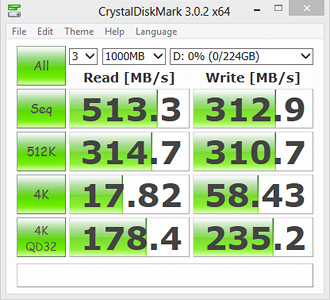

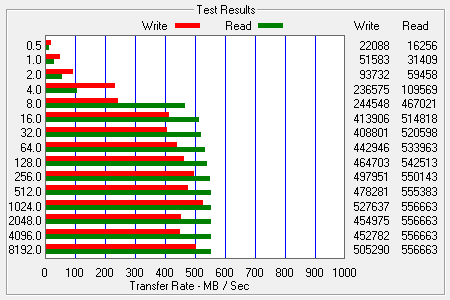

240GB

CrystalDiskMark 3.0.2 Bench Results     ATTO Bench Results

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

Specifications

Capacity : SKU
120GB : MDS7-BP4e-128
240GB : MDS7-BP4e-256
Controller: Phison S8
Form Factor: 2.5 Inch
NAND Flash: Micron MLC Sync NAND Flash
Interface: SATA III (Serial ATA)
Max Read Rate: Up to 560MB/s
Max Write Rate: Up to 530MB/s
Access Time: 0.1 ms
Dimensions: 100 x 70 x 7mm
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Humidity: RH = 95% under 55°C
Shock: 1500G/0.5ms
Vibration: 80-2000Hz/20G
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
NCQ: Up to 32 commands
Operation Voltage: 5V ± 5%
Idle : < 0.5W
Active: < 0.9W
MTBF: >2,000,000 hours
ECC Scheme: Support up to 72bit ECC correct per 1K Byte data
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Warranty: 2 Year

Return to top



MyDigitalSSD BP4 Slim 7 Series 2.5" SATA III (6G) SSD

Details

The Next Generation of Bullet Proof SSD Upgrades Have Arrived

MyDigitalSSD proudly introduces the BP4 Slim 7 Series, the 4th generation of their critically acclaimed and award-winning Bullet Proof line of solid state drives.

BP4 Slim 7 drives are easy to install SATA III (6G) replacement upgrades designed to eliminate the bottle-neck found in stock hard drives to increase user productivity up to 70X.

Unlike their predecessors, BP4 drives have been over provisioned for improved Random Read/Write performance and IOPS, extended performance endurance to reduce sluggishness as the drive fills with data, prolonged drive life, reliability, and low power consumption - all at the unequaled price to performance ratio synonymous with MyDigitalSSD Bullet Proof SSDs.

Backwards compatible with SATA II applications; BP4 Slim 7 drives feature a 9.5mm drive screw hole alignment to upgrade virtually any notebook with a 2.5" SATA port or SATA desktop workstation using a standard mounting adapter bracket, PC or Mac.

Highlights

  • Unequaled price to performance ratio
  • 19nm Toggle NAND Flash
  • Large storage capacity
  • Easy installation
  • Improve boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • Three year replacement warranty

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

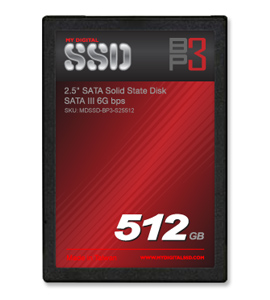

MyDigitalSSD BP3 2.5 inch SATA 6G SSD

Where to Buy

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

About the Controller

MyDigitalSSD BP4 SSDs feature the Phison S-Module III S8 controller to deliver all the advantages of Flash Disk technology with the Serial ATA III interface, fully compliant with standard mSATA form factor. The S-Module III S8 is based on the mSATA form factor which is generated by JEDEC, designed to operate at a maximum operating frequency of 300MHz with 40MHz external crystal.

The S8 can reach 500MB/s throughput based on ONFI/Toggle NAND (with DDR3 cache enabled and measured by CrystalDiskMark) with markedly lower power consumption than that of a traditional Hard Drive.

Performance Testing

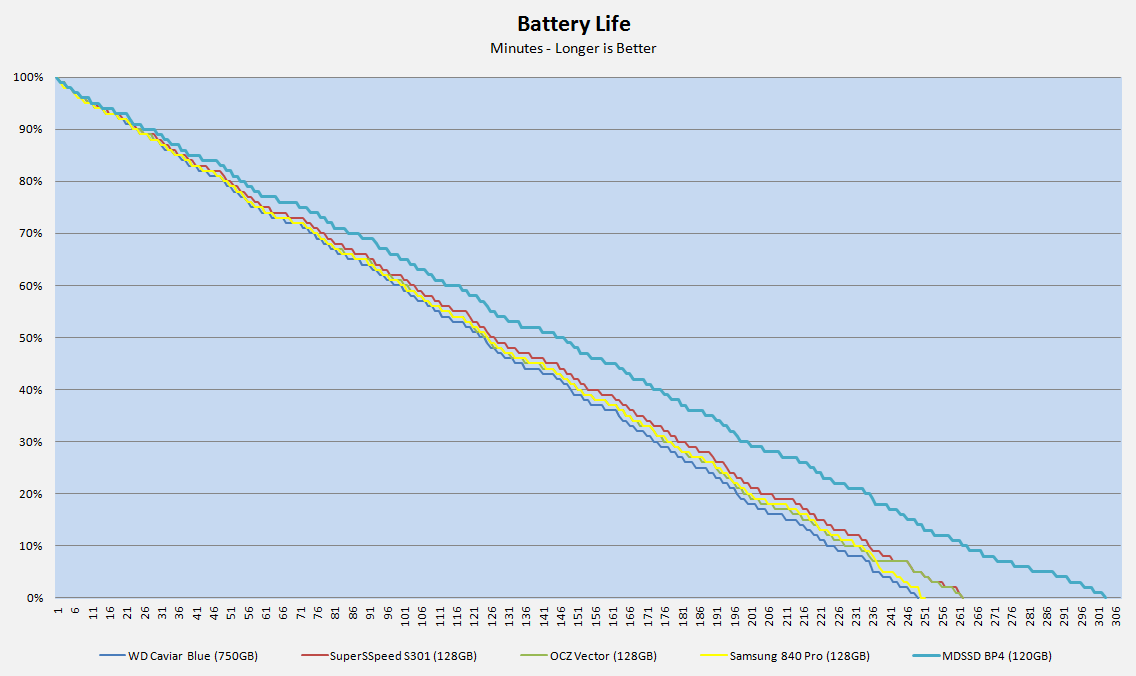

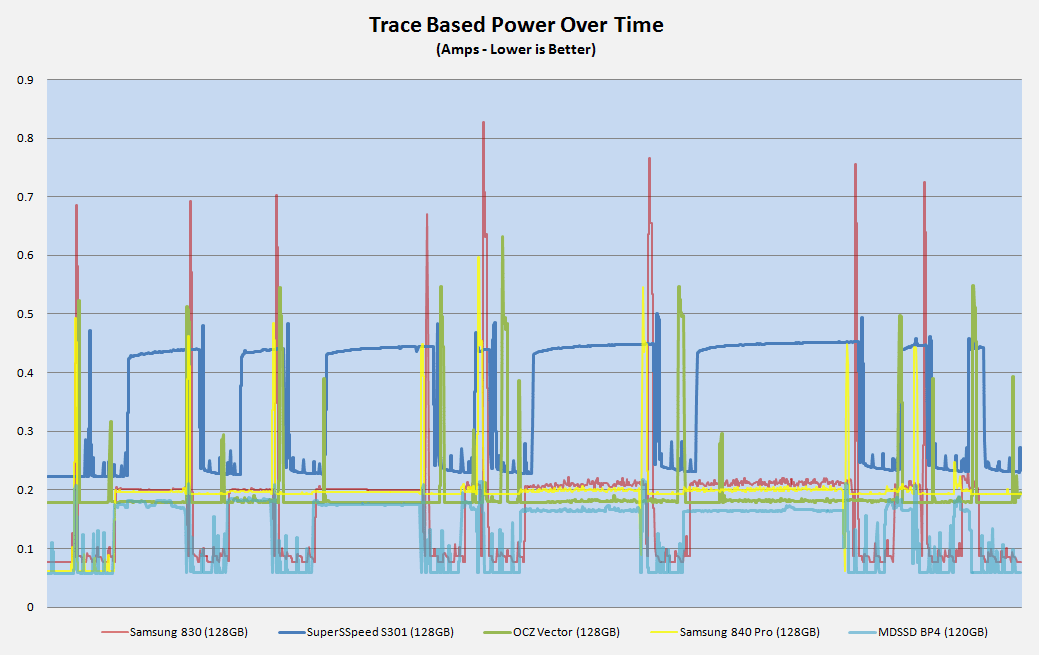

Low voltage operation for extended battery life and energy efficiency

Tests provided by TweakTown.com. Click images to enlarge in a new window.



Reviews & Awards

Firmware Updates

Specifications

Capacity : SKU
60GB : MDS7-BP4-060
120GB : MDS7-BP4-120
240GB : MDS7-BP4-240
480GB : MDS7-BP4-480
960GB : MDS7-BP4-960
NAND Flash: 19nm Toggle MLC
Form Factor: 2.5"
Interface: SATA III (Serial ATA)
Controller: Phison S8
Max Read Rate: Up to 560MB/s
Max Write Rate: Up to 530MB/s
4K Aligned Read: Up to 50,000 IOPS
4K Aligned Write: Up to 80,000 IOPS
Access Time: 0.1 ms
Dimensions: 100 x 70 x 7mm
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Humidity: RH = 95% under 55°C
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
NCQ: Up to 32 commands
Operation Voltage: 5V ± 5%
Maximum Ripple: 100mV, 0~30MHz
Idle : < 0.5W
Active: < 0.9W
MTBF: >2,000,000 hours
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Warranty: 3 Year
Note: Specifications are subject to vary based on use.

Return to top

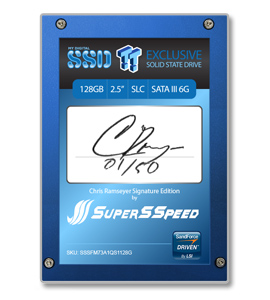

MyDigitalSSD 2.5" SuperSSpeed SATA III (6G) SandForce SSD

Details

MyDigitalSSD has teamed up with SuperSSpeeds to offer the fastest and top performing solid state drives on the market today. Utilizing the SandForce SF-2281 controller and SLC NAND flash, the SuperSSpeed boasts incredible speed for advanced gaming, multitasking, and multimedia computing power. Rated at 550MB/s Read and 520MB/s Write, the SuperSSpeed is proof that in this day and age, you get what you pay for, being arguably 20 times better than its nearest MLC rival at only twice the expense including accessories!

As with all MyDigitalSSD drives, the SuperSSpeed runs cool and quiet with no moving parts to create heat. Coupled with being shockproof, meaning that dropping your SSD or notebook no longer means losing your data, the SuperSSpeed it a far more durable and reliable upgrade to a traditional spinning hard drive (HDD).

Why choose SLC? SLC flash chips are rated at 100K Read/Write/Erase Cycles and offer virtually zero distinction between compressible and incompressible data. Conversely, MLC flash is rated at 3-5K read/write/erase cycles and gets quite choked up when incompressible data is tossed at it.

The SuperSSpeed is backwards compatible with SATA II applications and supports most major operating systems including Windows XP, Vista, 7, Mac OS10.X, and Linux.

Features

  • Unparalleled price to performance ratio
  • Easy remove and replace installation
  • Large storage capacity - 128GB
  • High-Speed SATA III (6Gb/s) Transfer Speeds
  • Compatible with SATA 1.5G/s, 3Gb/s interface
  • Original Intel SLC Flash Chips
  • NAND Flash memory components
  • Supports S.M.A.R.T.
  • Supports TRIM
  • Supports Garbage Collection
  • Backed by a 5 year warranty
  • Includes dual 2.5" HDD/SSD desktop mounting bracket that holds 2 drives.

Applications

  • Desktop and PC Workstations
  • Laptop and Mobile Systems
  • Enterprise Storage Systems

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD BP3 2.5 inch SATA 6G SSD

About the Controller

Today's award-winning SandForce Driven SSDs are well known for their performance and features. The SandForce SF-2281 the second generation of SandForce SSD Processors - continue accelerating SSD deployment in enthusiast and mainstream client computing platforms. The SF-2281 is an ideal solution for portable storage applications where power consumption, boot-up time, application performance, responsiveness, and small form factor are important. The Client SSD Processors have integrated enhanced DuraClass Technology that is architected to leverage today's densest SLC and MLC NAND flash memory. They deliver best-in-class performance, endurance, security, and power efficiency in a "DRAM-less", single chip solution.

Endurance and Longevity

As the geometries of each generation of flash memory evolves and shrink in order to dramatically lower $/GB, the overall flash endurance is dropping at a very high rate. The 2x/3xnm NAND flash memory has less than 5K P/E cycles. The memory of tomorrow will likely be even lower than that. DuraWrite technology optimizes writes to the flash memory over conventional controllers increasing the overall endurance and reliability of the complete SSD. Highly intelligent block management and wear leveling also extends the overall endurance. With this technology, SSD manufacturers can offer their high volume, client customers enterprise class reliability and at least 5-year lifecycles.

Performance and Power Optimization

SSDs greatly outperform traditional HDDs, and in many cases reach the limits of the bus interface. Advanced high speed SATA interfaces have been implemented in newer systems to remove this performance bottleneck. SSDs are perfect to take advantage of that higher speed interface. SandForce SSD Processors deliver performance that maximizes the throughput of a 6Gb/s SATA interface with balanced read/write speeds. In extremely low-power environments, the SF-2281 can tune total SSD power consumption vs. performance by limiting the number of simultaneously active flash devices. It also supports an ultra-low power sleep mode to maximize battery life.

Client Computing Security

Data security is becoming a critical component in the digital age. SandForce SF-2281 SSD Processors feature high-level security protocols to protect the security of data stored in flash memory. DuraClass technology automatically stores data in a highly secure AES-128 hardware encrypted format that double encrypts the data. The SF-2281 SSD Processors also optionally support TCG Opal security requirements. An optional disk-level password can be required prior to system boot adding an extra level of data security assurance for business travelers carrying confidential information.

Data Protection and Reliability

The SF-2281 SSD Processors provide data protection that surpasses the leading high-performance enterprise HDDs used today. This comes from a combination of a superior higher-level BCH ECC algorithm with up to 55 bits/512 Byte sector protection and the unique RAISE (Redundant Array of Independent Silicon Elements) technology. RAISE provides the protection and reliability of RAID on a single drive without the 2x write overhead of parity. This capability is transparent to the end-user and provides peace-of mind for mobile SSD OEMs knowing their customer's data is protected.

Performance Testing

Test Environment:

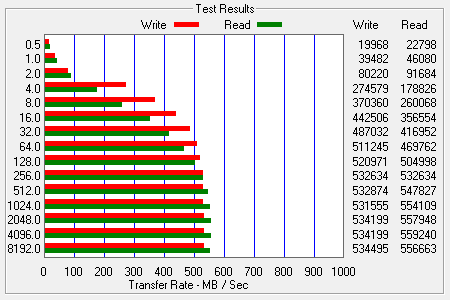

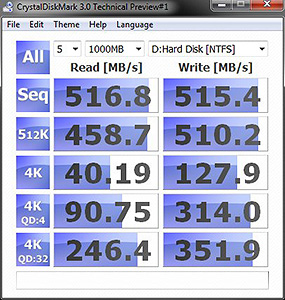

CrystalDiskMark 3.0 Bench Results   ATTO Bench Results

Reviews & Awards

Specifications

Capacity : SKU
64GB : RSS3IS25DF21A02-64G
128GB : SSSFM73A1QS1128G
NAND Flash: Intel SLC
Form Factor: 2.5"
Interface: SATA III (6G)
Max Read Rate: Up to 550MB/sec
Max Write Rate: Up to 520MB/sec
4kb Random Read: 80,000 IOPS
4kb Random Write: 68,000 IOPS
Access Time: 0.1 ms
Dimensions: 100.18mm x 69.93mm x 9.3mm
Operation Temperature: -20°C to 70°C
Humidity: 5% - 95%
Weight: 80g
Security Erase: Support
In-Drive UPS: Support
RAID Support: Yes
TRIM Support: Yes
Input Voltage: 5V ± 5%
Power Consumption (Active): < 3.0W
Power Consumption (Idle): < 1.5W
MTBF: >2,000,000 hours
Compliance: RoHS / CE / FCC
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista
Mac OS10.X
Linux
Package Contents: Solid State Drive
Dual 2.5" SSD/HDD Desktop Adapter Bracket
1' SATA cable
Screws
Warranty: 5 Year

Return to top



MyDigitalSSD BP3 2.5" SATA III (6G) SSD Solid State Drive

Details

Upgrade your Mac or PC with 6G speeds and the reliability you've come to expect from MyDigitalSSD Bullet Proof SSDs

Introducing MyDigitalSSD Bullet Proof 3 (BP3) SATA III 2.5 inch solid state drives for laptop notebooks and desktop computers. BP3 drives are easy to install SSD upgrades that eliminate the bottle-neck of stock hard drives (HDDs) and double the performance of SATA II SSDs with speed boosts that not only increase productivity but lower energy consumption, prolonging battery life.

Backwards compatible with SATA II applications, BP3 drives will peg SATA II BUS speeds in most cases.

Highlights

  • Unequaled price to performance ratio
  • 24nm Toshiba HBL Flash
  • Large storage capacity
  • Easy remove and replace installation
  • SATA Revision 3.0 compliant: High-speed SATA 6Gb/s interface
  • Compatible with SATA 1.5G/s, 3Gb/s interface
  • Support DDR3 I/O interface
  • SSD Enhanced SMART ATA feature set
  • NCQ command set
  • TRIM command support
  • RAID support
  • Three year replacement warranty

Features

  • High and Reliable ECC capability up to 24bits/sector
  • S.M.A.R.T features optimized for SSD
  • Bit error monitoring and management
  • Dynamic and static wear-leveling
  • Dynamic bad block management
  • SMART commands and additional SSD monitoring
  • Supports 1.8V and 3.3V voltage level
    - Supports 1.8V for ONFI Flash
    - Supports 3.3V for conventional Asynchronous Flash
  • ONFI Flash
    - ONFI2.3 Interface support: 8 channels max for synchronous mode 3 (166MB/s)
    - ONFI2.3 Interface support: 5 channels max for synchronous mode 5 (200MB/s)
  • Toggle1.0 and Toggle2.0
    - Toggle 1.0 Interface support: 8 channels max for 133Mbps mode (166MB/s)
    - Toggle 2.0 Interface support: 5 channels max for 100Mbps mode (200MB/s)
  • Support both on-the-fly and off-line 256bit AES hardware encryption and decryption

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD BP3 2.5 inch SATA 6G SSD

Performance Testing

Test Environment: Lenovo Thinkpad x220 Notebook w/ MSAHCI Drivers

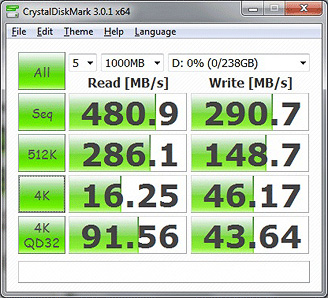

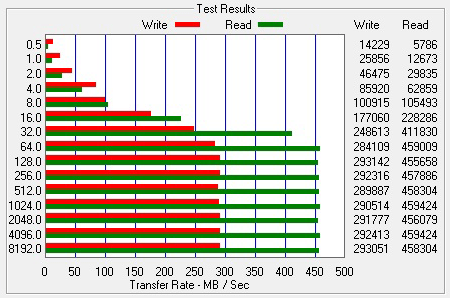

CrystalDiskMark 2.2 Bench Results   ATTO Bench Results

Firmware Updates

Specifications

Capacity : SKU
64GB : MDSSD-BP3-S25064
128GB :MDSSD-BP3-S25128
256GB : MDSSD-BP3-S25256
512GB : MDSSD-BP3-S25512
NAND Flash: Toshiba 24nm (Type B) MLC
Form Factor: 2.5"
Interface: SATA III (6G)
Max Read Rate: Up to 500MB/sec
Max Write Rate: 128GB-512GB: Up to 320MB/sec
64GB: 110MB/sec
4kb Random Read: 16,000 IOPS
4kb Random Write: 46,000 IOPS
Access Time: 0.1 ms
Dimensions: 99.8 x 69.63 x 9.3mm
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Humidity: RH = 95% under 55°C
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
Operation Voltage: 5V ± 5%
Maximum Ripple: 100mV, 0~30MHz
Idle : < 0.5W
Active: < 0.9W
MTBF: >2,000,000 hours
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Warranty: 3 Year
Note: Specifications are subject to vary based on use.

Return to top

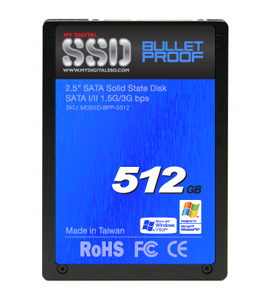

MyDigitalSSD Bullet Proof 2.5" SATA II SSD

Details

Upgrade your laptop or desktop computer with MyDigitalSSD 2.5" SATA Solid State Drives

PC and Mac compatible, MyDigitalSSD 2.5" SATA II Solid State Drives (SSDs) drives boost speed, performance, and overall productivity with blazing fast transfer rates and lower energy consumption than traditional spinning hard drives (HDDs). Based on MLC flash, MyDigitalSSD drives offer transfer speeds up to 270MB/s and provide hot swapping abilities when removing, replacing or upgrading flash disks.

Electrical/Physical Interface

  • SATA interface
    - Support SATA 1.5Gbps and 3Gbps interface
  • DDR1 IO
    - Support DDR1 I/O interface
  • Mobile-DDR IO
    - Support mobile-DDR I/O interface
  • Flash IO
    - Support 1.8V and 3.3V voltage level
    - Support 1.8V for ONFI Flash
    - Support 3.3V for conventional Asynchronous Flash

Controller Features

  • SATA Revision 2.6 compliant
  • Compatible with SATA 1.5Gbps and 3Gbps interface
  • Power management supported
  • Support expanded register for SATA protocol 48 bits addressing mode
  • Embedded BIST function of SATA PHY for low cost mass production

NAND Flash Interface

  • Build-in hardware ECC circuit (48bit/2KB)
  • Support all types of SLC and MLC NAND Flash
  • ONFI2.0 Interface support: 5 channels max, mode 2
  • Bus Width: 8/16 bit
  • Support 8 Flash chip enable

Mobile-DDR Interface

  • 32 bit data bus
  • Data Rate: 320Mbps
  • Bandwidth: 1,280MB/s
  • Support Capacity: 128MB

Drive Features

  • Build in 32 bits micro-controller
  • UART
  • Support of 10 GPIO pins
  • Support TRIM command
  • Support SMART command
MyDigitalSSD Bullet Proof 2.5 inch SATA II SSD

Performance Testing

Test PC: Dell Dimension 5150

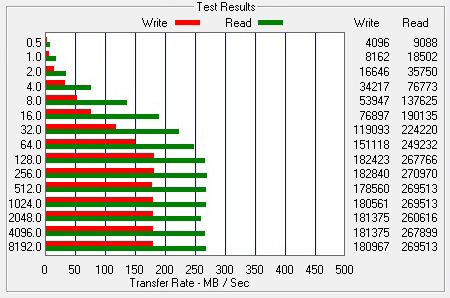

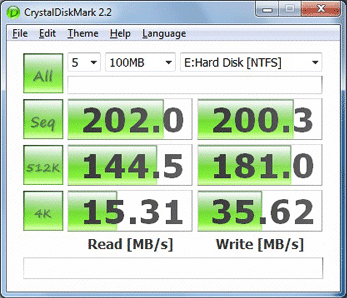

CrystalDiskMark 2.2 Bench Results    ATTO Bench Results

Firmware Updates

Specifications

Capacity : SKU
32GB : MDSSD-BPP-S32
64GB : MDSSD-BPP-S64
128GB : MDSSD-BPP-S128
256GB : MDSSD-BPP-S256
512GB : MDSSD-BPP-S512
NAND Flash: MLC
Form Factor: 2.5"
Interface: SATA II (Serial ATA)
Max Read Rate: 270MB/sec
Max Write Rate: 200MB/sec
4kb Random Read: 35,000 IOPS
Access Time: 0.1 ms
Dimensions: 99.8 x 69.63 x 9.3mm
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
NCQ: Up to 32 commands
Input Voltage: 3V ± 5%
Idle: < 0.5W
Active: < 0.9W
MTBF: >2,000,000 hours
Features: Sudden power-off recovery
Battery backup function
High and Reliable ECC capability up to 24bits/sector
S.M.A.R.T features optimized for SSD
Bit error monitoring and management
Dynamic and static wear-leveling
Dynamic bad block management
SMART commands and additional SSD monitoring
OS Support:
Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Warranty: 3 Year

Return to top



MyDigitalSSD Bullet Proof Pro 2.5" SATA II SSD

Details

Upgrade your laptop or desktop computer with MyDigitalSSD 2.5" SATA Solid State Drives

PC and Mac compatible, MyDigitalSSD 2.5" SATA II Solid State Drives (SSDs) drives boost speed, performance, and overall productivity with blazing fast transfer rates and lower energy consumption than traditional spinning hard drives (HDDs). Based on SLC flash, MyDigitalSSD Bullet Proof Professional drives offer transfer speeds up to 200MB/s and provide hot swapping abilities when removing, replacing or upgrading flash disks.

Electrical/Physical Interface

  • SATA interface
    - Support SATA 1.5Gbps and 3Gbps interface
  • DDR1 IO
    - Support DDR1 I/O interface
  • Mobile-DDR IO
    - Support mobile-DDR I/O interface
  • Flash IO
    - Support 1.8V and 3.3V voltage level
    - Support 1.8V for ONFI Flash
    - Support 3.3V for conventional Asynchronous Flash

Controller Features

  • SATA Revision 2.6 compliant
  • Compatible with SATA 1.5Gbps and 3Gbps interface
  • Power management supported
  • Support expanded register for SATA protocol 48 bits addressing mode
  • Embedded BIST function of SATA PHY for low cost mass production

NAND Flash Interface

  • Build-in hardware ECC circuit (48bit/2KB)
  • Support all types of SLC and MLC NAND Flash
  • ONFI2.0 Interface support: 5 channels max, mode 2
  • Bus Width: 8/16 bit
  • Support 8 Flash chip enable

Mobile-DDR Interface

  • 32 bit data bus
  • Data Rate: 320Mbps
  • Bandwidth: 1,280MB/s
  • Support Capacity: 128MB

Drive Features

  • Build in 32 bits micro-controller
  • UART
  • Support of 10 GPIO pins
  • Support TRIM command
  • Support SMART command
MyDigitalSSD Bullet Proof Pro 2.5 inch SATA II SSD

Firmware Updates

Specifications

Capacity : SKU
8GB : MDSSD-BPX-S08
16GB : MDSSD-BPX-S16
32GB : MDSSD-BPX-S32
64GB : MDSSD-BPX-S64
NAND Flash: SLC
Form Factor: 2.5"
Interface: SATA II (Serial ATA)
Max Read Rate: 200MB/sec
Max Write Rate: 200MB/sec
4kb Random Read: 35,000 IOPS
Dimensions: 99.8 x 69.63 x 9.3mm
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Weight: < 6g
RAID Support: Yes
TRIM Support: Yes
Operation Voltage: 5V ± 5%
Standby: < 0.2W
Read Operating: < 1.4W
Write Operating: < 4.7W
MTBF: >2,000,000 hours
OS Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux series: Fedora, Ubuntu, Solaris, etc.
DOS
Warranty: 3 Year

Return to top
