MyDigitalSSD provides Consumer and
Professional grade SSD (Solid State Drives) products at an
unparallel price to performance ratio. We use only the best Single Layer Cell
(SLC) and Multi Layer Cell (MLC) memory in our
products.
We have developed 2 lines of SSD our High Speed MLC Consumer
Grade and our High Speed SLC Professional Grade (coming soon).
These 2 lines offer great choices for the price and performance
savvy customers. |
|
|
|
|
|
|
|
|
NEW! MyDigitalSSD PCI Express PCI-e
SSD
for Dell Inspiron Mini 9 |
|
|
Expand your storage space
for your Dell Inspiron Mini 9 with MyDigitalSSD PCI-e
SSD. With this low cost product you can expand the
available memory on your Dell without losing any
performance. This part is as fast as or faster than the
stock SSD in your Inspiron Mini 9.
This drive is a direct replacement for the Module that comes inside of your Dell Mini. You will have to use your restoration CD to reinstall the OS and drivers or put a ghost image (with ghosting software) of your current drive on an external HD, SD card, or flash stick.
|
|
|
PRODUCT ADVANTAGES: |
|
• Our 32GB SSD
provides you 28GB of free space on your PC after the OS
is installed, compared to only 12GB using the 16GB model
or 4GB using the 8GB model Mini 9 PC.
• Economically speaking, It
makes more sense if you buy the 8GB Mini 9 and then add
the MyDigitalSSD upgrade giving you over twice the
capacity and 28GB of free space for $100, rather than if
you paid the $50 to Dell for their 16GB upgrade where
you would only have 12GB of free space.
• As shown in this product review by JKK mobile, performance is equal to the stock STEC SDD that comes with the Dell Mini 9
so you will see no decrease in performance using our SSD
instead of Dell's. |
|
|
|
PRODUCT REVIEWS: |
|
|
| PRODUCT
SPECIFICATIONS: |
|
MPN |
MLC: MDSSD32MLC-D
SLC: MDSSD16SLC-D, MDSSD32SLC-D |
Standard ATA/IDE
Bus Interface |
512 Bytes / Sector
ATA command set compatible
Selectable Master/Slave Setting |
|
Capacity |
MLC: 32GB
SLC: 16GB, 32GB |
|
Data Transfer Mode |
Support Data Transfer up to
PIO mode 6
Support Data Transfer up to Multiword DMA mode 2
Support Data Transfer up to Ultra DMA mode 5 |
|
Performance |
MLC: Sustained Read Speed up to
70MB/s, Sustained Write Speed up to 15MB/s
SLC: Sustained Read Speed up to
43MB/s, Sustained Write Speed up to 26MB/s
(Subject to change after testing) |
|
Temperature |
0C to 70C for operating
-25C to 85C for storage |
|
Operating Voltage |
3.3v |
|
Intelligent ATA/IDE Module |
Built-in Embedded Flash File
System implements dynamic wear-leveling algorithms
and static
wear-leveling algorithms to increase endurance of flash
media |
|
ECC Correction |
Built-in ECC corrects up to
12 random bits error per 512 bytes |
|
Compliancy |
RoHS Compliant |
|
Warranty |
1 Year Replacement |
|
|
|
WHERE TO BUY: |
|
|
|
Have your
store linked here!
Please contact Sales to request
a
retailer form. |
|
|
|
|
MyDigitalSSD PCI Express PCI-e SSD
for ASUS EEE PC 900, 901, 904, and 1000 |
|
MyDigitalSSD introduces a plug and play upgrade
for the ASUS EEE PC computers!
There is no need to
reinstall your OS because your current 4GB+ module in the system houses
your existing OS and programs. Once the upgrade is
complete you will end up with a larger single drive for
your ASUS!
Note: As a precaution, please be sure to move all
important files onto another computer, then once you
have completed the upgrade you can move them back to the
system. |
|
|

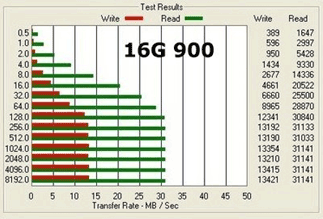

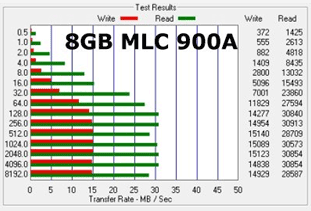

| PRODUCT
REVIEWS: |
|
|
|
| PRODUCT
SPECIFICATIONS: |
|
MPN |
MLC: MDSSD32MLC-P, MDSSD64MLC-P
SLC: MDSSD08SLC-P, MDSSD16SLC-P, MDSSD32SLC-P |
Standard ATA/IDE
Bus Interface |
512 Bytes / Sector
ATA command set compatible
Selectable Master/Slave Setting |
|
Capacity |
MLC: 32GB, 64GB
SLC: 8GB,
16GB, 32GB |
|
Data Transfer Mode |
Support Data Transfer up to
PIO mode 6
Support Data Transfer up to Multiword DMA mode 2
Support Data Transfer up to Ultra DMA mode 5 |
|
Performance |
MLC: Sustained Read Speed up to
35MB/s, Sustained Write Speed up to 14MB/s
SLC: Sustained Read Speed up to
43MB/s, Sustained Write Speed up to 26MB/s |
|
Temperature |
0C to 70C for operating
-25C to 85C for storage |
|
Operating Voltage |
3.3v |
|
Intelligent ATA/IDE Module |
Built-in Embedded Flash File
System implements dynamic wear-leveling algorithms
and static
wear-leveling algorithms to increase endurance of flash
media |
|
ECC Correction |
Built-in ECC corrects up to
12 random bits error per 512 bytes |
|
Compliancy |
RoHS Compliant |
|
Warranty |
1 Year Replacement |
|
|
|
WHERE TO BUY: |
|
|
|
|
|
|
Have your
store linked here!
Please contact Sales to request
a
retailer form. |
|
|
|
|

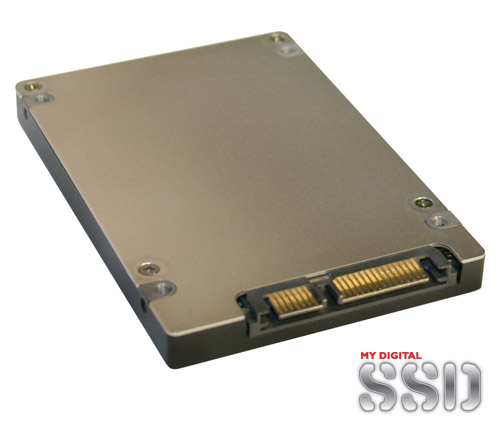

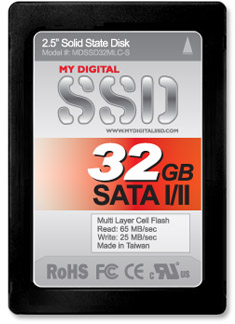

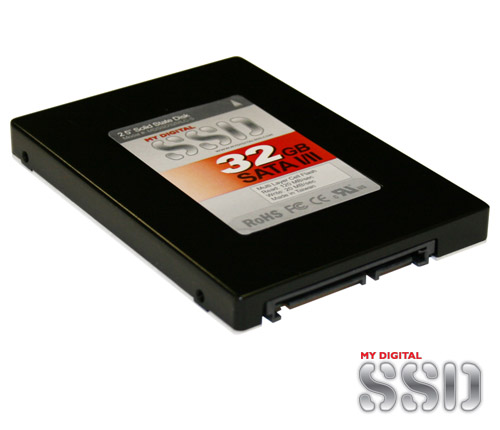

2.5" 32GB SATA I/II
Solid State Disk - Multi Layer Cell (MLC)
Model
Number: MDSSD32MLC-S MSRP:$249.99 |
|
MyDigitalSSD Solid State Drives feature the world’s
fastest MLC read and write speeds, and offers superior
Data Security, Longevity, Performance, Reliability and
Power Savings to conventional HDDs
While this MLC SSD is slower than a conventional Hard
Disk in Write speeds and faster than many conventional
HDD’s in read speeds there are many advantages to using
the MLC SSD product in your applications.
|
| FEATURES: |
|
32GB Capacity
Read Speed 120MB/sec
Write Speed 30MB/sec
Rapid seek time
Low power consumption
No noise
No heat
Identical boot time to HDD's (on our test
machine)
|
|
|
PRODUCT ADVANTAGES: |
Performance
SSD eliminates all of the delays contributed by
mechanics. By removing the mechanical seek, spin-up and
rotational latency times, SSD increases overall
performance.
Reliability
Excessive shock is the major cause of failure in both
PCs and consumer electronics products. Damage can occur
to the heads, disk or even the spindle of the HDD,
depending on the magnitude or duration of the shock.
NAND-based SSDs are free from the effects of shock and
vibration given the lack of moving parts, and are
positioned to be the optimal solution for mobile
devices. SSDs match the chip mounting and PCB
manufacturing reliability of the rest of the system, and
the SSD mean time between failure (MTBF) increases
significantly over electromechanically based solutions.
Power Savings
In mobile devices, extended battery life is an important
design goal. The 2 most power hungry devices on any
mobile devise is the LCD Screen and the HDD. Over the
past 10 years, laptop HDDs have reduced the “active”
power usage, but are still limited to the baseline power
needed to spin up disks and move the heads. In contrast,
NAND-based SSDs expend most of their power for the
reading or writing of data to/from the NAND or host
interface only. The idle and sleep power is minimal.
Also HDD take much time and energy starting and stopping
while the SSD can power up and down virtually
instantaneously while expending virtually no energy.
Also SSDs save on overall CPU usage leading to faster
and cooler pc operations.
Cost
While the initial Cost of SSDs per GB is more than HDDs
the advantages to ownership are far superior to
conventional HDDs considering Data Security, Longevity,
Speed, Reliability and Power Savings.
|
|
|

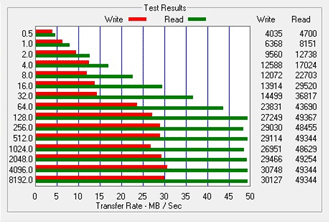

| PRODUCT
BENCH TESTING: |
Test Parameters
SSD: MyDigitalSSD 32GB MLC SATA
MDSSD32MLC-S
PC: Windows XP
Home Installed in a Dell Dimension C521
Software: HDBench V3.3
Format: FAT32 |
 |
Conclusions
From the results witnessed during testing, we
are confidant that the MyDigitalSSD MLC
Solid State Disk is the fastest MLC SSD available on the market today.
Windows was a breeze as installation took approximately 35 minutes and, once fully installed, the PC performed equal to the HDD that came with the
PC. The SSD was
noiseless throughout and
stayed cool resulting in
considerable energy savings as there was no need for
PC fan activation or mechanical operations of a
conventional HDD. This product will dramatically
extended battery life in portable devices such as
Notebook Computers, Portable Storage Devices, Multi
Media Players, and more. Rapid seek times resulted
in virtually no wait in opening saved files (0.4MS
seek time vs. 15MS with an HDD) and improved
performance in various applications.
If
you're not looking to spend the big money on SLC
drives but are still looking to take advantage of SSD's strengths
then this drive is
your best alternative.
|
|
|
| PRODUCT
SPECIFICATIONS: |
| Form Factor |
2.5 inch type (HDD compatible) |
Access Time |
0.4 ms |
| Storage Capacity |
32GB |
Shock |
1500G / 0.5ms (operating) |
| Flash Memory |
Multi Layer Cell |
Vibration |
20G / 20-2000Hz (operating) |
| Dimensions |
69.85mm x 100.2mm x 9.5mm +/-0.2mm |
Compatibility |
SATA I/II |
| SATA Interface |
Serial ATA command set compatible |
OS Support |
Windows 98/2000/XP/Vista and Linux |
| Power Supply |
Vcc = 5V +/-5 % |
MTBF |
>600,000 hours |
| Operating Temperature |
0° C to +70° C |
Read |
Unlimited |
| Sequential Read Rate |
120MB/sec (min) |
Write/Erase |
>87years @ 100GB write-erase /day |
| Sequential Write Rate |
30MB/sec (min) |
Certifications |
RoHS, FCC, CE, and RU Compliant |
| Sequential Read IOPS |
84500 IOPS |
Warranty |
1 Year Replacement |
|
|
|
