Mobile Solid State Drives

MyDigitalSSD portable, or mobile, SSD solid state hard drives are ideal for on-the-go users who require the performance and durability of an internal SSD in an external storage solution to share files between various PC systems, PC or Mac.

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.


Quick Navigation:



MyDigitalSSD OTG V2 SuperSpeed USB 3.1 Gen 1 UASP Pocket SSD

Details

OTG Mobile SSD | SuperSpeed USB 3.1 (Gen 1) with UASP | External Solid State Drive

Store It. Stream It. Own It.

MyDigitalSSD makes it easier than ever to take your favorite Apps, Games, Music, Photos, Documents, or entire OS on-the-go with the OTG V2 pocket SSD.

Blazing fast speeds on the go!

Optimized to reach incredible data transfer speeds up to 465MB/s read and 445MB/s write in USAP-enabled devices, users can run operating systems, programs, games, media, and more directly from the OTG V2 anytime, anywhere.

Sleeker, Smaller, and Lighter

The smoothly redesigned OTG V2 fits in the palm of your hand, measuring slightly smaller than a business card and weighing less than 1 ounce, making it an ideal perfect travel companion for even when you're packing light.

Please note, the OTG V2 pocket SSD is not crushproof or waterproof.

A Cut Above External Hard Drives

Not only is the OTG V2 up to 4X faster than comparable spinning hard drives, it also utilizes SSD technology to better protect your data. With no moving parts that can wear down over time, the OTG V2 eliminates your risk of data loss during the day-to-day bumps, shakes and drops that come with on-the-go computing.

Ready for Any Workload

OTG V2 drives have been have been over provisioned to help provide consistent random read/write performance and IOPS, extended performance endurance to minimize sluggishness as the drive fills with data, prolonged drive life, reliability, and low power consumption.

Maximum Compatibility

The OTG V2 is your storage gateway between devices, offering plug-and-play capability in PC or Mac and full compatibility with USB specifications - USB 1.1, USB 2.0, and USB 3.1 Gen 1 (USB 3.0).

Additionally, each OTG V2 includes two USB cables: One 8-inch USB 3.0 cable for use in standard USB ports and one 18-inch USB Type-C cable for use in USB-C compatible smartphones, tablets, and laptops.

Features

  • Unequaled price to performance ratio
  • Blazing fast speeds: up to 465MB/s read, 445MB/s write
  • Low power consumption
  • Large storage capacity
  • PHISON S11 SATA 6G controller
  • Toshiba TLC NAND flash
  • Interface: USB 3.1 (Gen 1) UASP support
  • Interface transfer rate: USB 3.1 (Gen 1) 5Gbps / USB 2.0 480Mbps
  • USB 3.1 (Gen 1) UASP mode: Windows 8/8.1/10, Mac OS X 10.8 or newer
  • USB 3.0 support: Windows XP/Vista/7/8/8.1/10, Mac OS X 10.8
  • USB 2.0 support: Windows 2000 and above, Mac OS 10.x, Linux
  • Powered by USB port: no battery or external power required
  • Hot Plug & Play: no driver installation needed
  • 3-year warranty
MyDigitalSSD otg USB 3.0 Mobile SSD

Where to Buy*

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 10 Pro 64-Bit / USB 3.1 Type C Port / Driver UASPStor

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

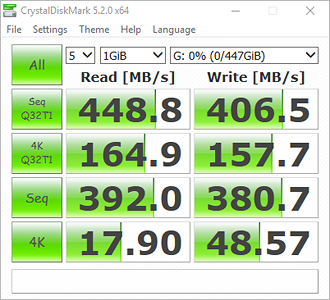

480GB

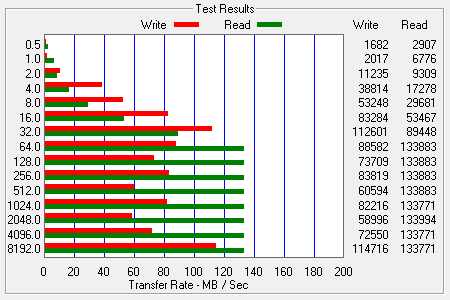

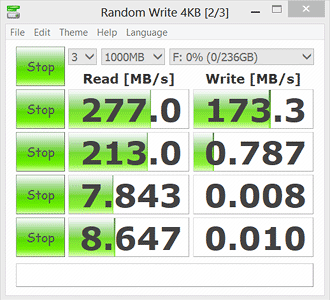

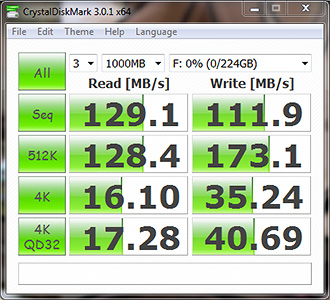

CrystalDiskMark Bench Results     ATTO Bench Results

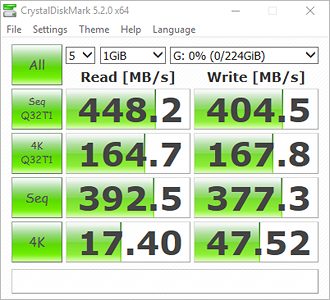

240GB

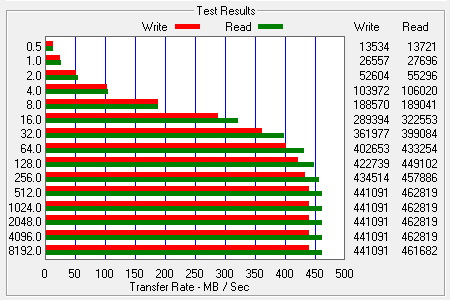

CrystalDiskMark Bench Results     ATTO Bench Results

120GB

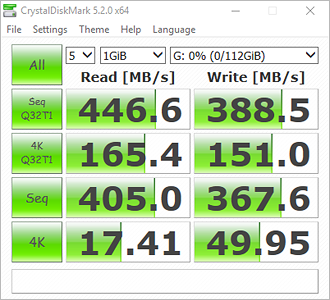

CrystalDiskMark Bench Results     ATTO Bench Results

Specifications

Capacity : SKU
120GB : MDMS-OTG-128
240GB : MDMS-OTG-256
480GB : MDMS-OTG-512
Interface: USB 3.1 (Gen 1) with UASP Support
NAND Flash: Toshiba TLC NAND Flash
Controller: PHISON S11 (PS3111)
Interface Transfer Rate: SuperSpeed USB 3.1 Gen 1: 5Gbps
High Speed USB 2.0: 480Mbps
Full Speed USB 1.1: 12Mbps
Sustained Read: 465MB/s (ATTO)
Sustained Write: 445MB/s (ATTO)
Random 4K Read: 20MB/s (CDM)
Random 4K Write: 50MB/s (CDM)
Operation Temperature: 0°C to 70°C
Humidity: 20% to 90%
MTBF: 2,000,000 hours
SSD Case/Housing: Plastic
Case Design: White with silver trim
Dimensions: 80 x 50 x 9mm (L x W x H)
Weight: < 1 oz. (24g)
USB 3.1 UASP Mode: Windows 10 / 8.1 / 8
Mac OS X 10.8
USB 3.0 Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP
Mac OS X 10.8
USB 2.0 Support: Windows 2000 and above
Mac OS 10.x
Linux
Compliance: RoHS / CE / FCC
Package Contents: MyDigitalSSD OTG V2 USB 3.1 Mobile SSD
8 inch USB 3.0 (USB 3.1 Gen 1) Cable
18 inch USB Type-C (USB-C) Cable
Warranty: 3 Year

Return to top

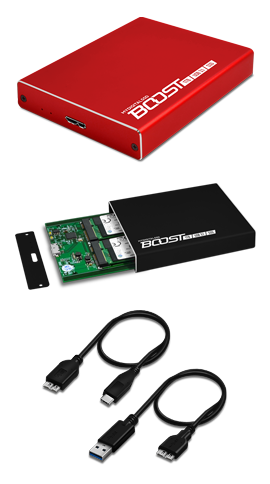

MyDigitalSSD BOOST USB 3.1 SuperSpeed Plus UASP Portable SSD

Details

BOOST Series | USB 3.1 SSP UASP | External Solid State Drive

Never feel frustrated or left waiting with MyDigitalSSD's external USB 3.1 SuperSpeed Plus BOOST with UASP - the world's fastest USB 3.1 SSD!

Designed to keep your data safe on the go, the BOOST fits a full terabyte (1TB) of storage in your pocket while delivering up to 9X faster performance than an external hard drive; with up to 35X faster access times.

The BOOST utilizes two TLC SATA III SSDs working together in RAID 0 to maximize bandwidth during data transfer; allowing users to share files, work directly from the drive, and run installed apps or games at incredible transfer speeds of up to 830MB/s read and 730MB/s write.

Great for:

  • Improving Xbox One and Steam game performance with faster load times
  • Quick access to your favorite movies, music, photos, and more at home or on the go
  • Durable and reliable backup storage

Don't let other drives hold you back. Give your productivity a BOOST with high-performance portable storage from MyDigitalSSD!

USB 3.1 SuperSpeed Plus (SSP)

The MyDigitalSSD BOOST maximizes drive performance utilizing 10Gbps USB 3.1 SuperSpeed Plus (SSP) connectivity. USB 3.1 standard is backward compatible with USB 3.0/2.0/1.1 host connections for use in virtually any USB device.

UASP Support

Enhanced with UASP (USB Attached SCSI Protocol) support, the BOOST offers transfer speeds up to 70% faster than traditional USB 3.0 in UASP-enabled host devices by reducing latency and processor usage to utilize the BOOST's full potential. The results of which is near-instant access to your data anytime, at home or on the go.

Durable Compact Design

No bigger than the average wallet, the MyDigitalSSD BOOST features a lightweight, crush resistant aluminum casing that safeguards against shock and vibration for optimum data protection in any environment.

Bus-Powered

BOOST solid state drives are powered directly through the USB port, eliminating the need to carry an additional power cord.

Plug and Play

Access your files from any USB compliant notebook or device with this hot-swappable plug and play BOOST SSD. No additional drivers or software required.

Next Level Gaming

Don't let lengthy load times ruin your favorite games. Get in the game faster by loading your XBox One and Steam library directly from the MyDigitalSSD BOOST portable SSD.

Loading from the BOOST not only reduces load times but simultaneously saves space on your stock hard drive and opens the possibility of safely taking your games on the go. Stop wasting time downloading at a friend's house, show up ready to play with BOOST!

Includes 2 18-inch USB Cables

Each BOOST portable SSD includes two 18" USB cables to maximize connectivity. One, a 3.0 (USB 3.1 Gen 1) USB-A to Micro-B cable for use in any standard USB port. The other, a 3.1 USB-C to Micro-B cable for use in newer desktops, expansion cards, laptops, and mobile devices that have a USB-C port.

MyDigitalSSD BOOST USB 3.1 SPortable SSD with UASP Support

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 7 Ultimate 64-Bit / USB 3.1 Gen 2 Type A and C ports. Driver UASPStor.

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

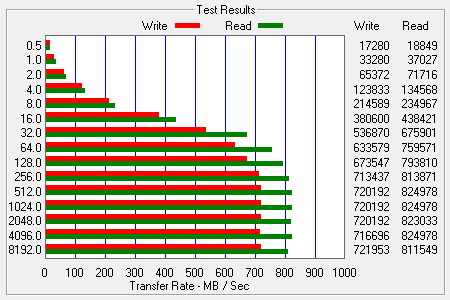

1TB

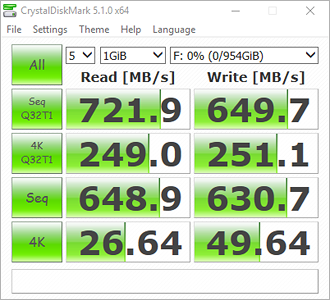

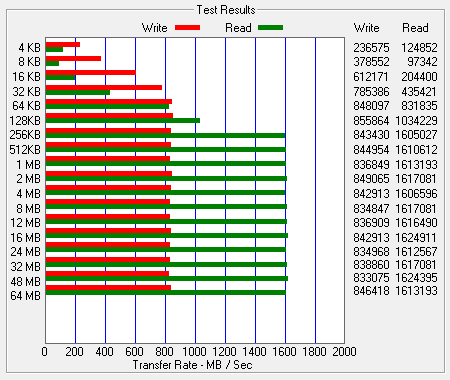

CrystalDiskMark Bench Results     ATTO Bench Results

Reviews & Awards

Specifications

SKU:
Red: MDMSR-BST-1TB-RD
Black: MDMSR-BST-1TB-BK
Capacity: 1TB
Interface: USB 3.1 SSP with UASP
Chipset: ASMedia ASM1352R
NAND Flash:: TLC NAND
Max Sequential Read: 830MB/s (ATTO)
Max Sequential Write: 730MB/s (ATTO)
Random 4K Read: 30MB/s (CDM)
Random 4K Write: 55MB/s (CDM)
Interface Transfer Rate: USB 3.1 SuperSpeed+: 10Gbps
USB 3.0 SuperSpeed: 5Gbps
USB 2.0 High Speed: 480Mbps
USB 1.0 Full Speed: 12Mbps
USB 1.0 Low Speed: 1.5Mbps
Plug and Play (PnP): Yes
Hot Swappable: Yes
TRIM Support: Yes
UNMAP Support: Yes
Operating Temperature: 0°C ~ 40°C
Storage Temperature: -20°C ~ 70°C
Housing Material: Aluminum
Housing Color: Matte red or black with silver trim
Dimensions: 98mm x 80mm x 17mm
Weight: 5 oz.
USB 3.1 UASP Mode: Windows 10 / 8.1 / 8
Mac OS X 10.8 or newer
USB 3.1 Support: Windows 10 / 8.1 / 8 / 7
Mac OS X 10.8
Linux kernel 4.6 or newer
USB 3 UASP Mode: Windows 10 / 8.1 / 8
Mac OS X 10.8 or newer
USB 3 Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP
Mac OS X 10.8 or newer
USB 2 Support: Windows 2000 and above
Mac OS 10.x
Linux
Compliance: RoHS / CE / FCC
Package Contents: 1TB MyDigitalSSD BOOST USB 3.1 SSP portable SSD
18 inch (1.5 ft) USB 3.0 (USB 3.1 Gen 1) USB-A to Micro-B cable
18 inch (1.5 ft) USB 3.1 USB-C to Micro-B cable
Screwdriver
Warranty: 3 Year

Return to top

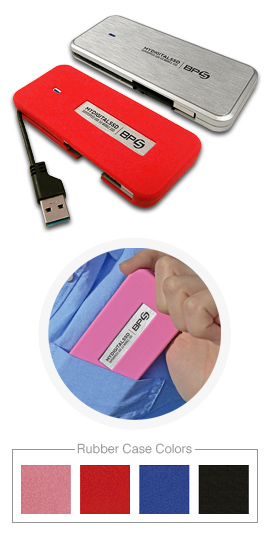

MyDigitalSSD BP5 SuperSpeed USB 3.0 Pocket SSD - UASP Compliant

Details

Bullet Proof 5 | BP5 | SuperSpeed USB 3.0 with UASP | External Solid State Drive

The MyDigitalSSD Bullet Proof 5 (BP5) SuperSpeed USB 3.0 external solid state drive is the ultimate on-the-go storage solution for Notebook/Ultrabook/Chromebook/NUC Mini PC/Desktop users, of all experience levels, who demand more from their device.

Designed with function and style in mind, the BP5 is small enough to fit in your pocket and packs a serious punch with transfer speeds up to 465MB/s for performance that allows users to load programs or boot an OS directly from their USB port. The BP5 also features an integrated USB 3.0 cable for hassle free transportation and includes 4 interchangeable rubber sleeves to match any mood or outfit.

Securely bring all of your photos, music, videos, documents, and more, wherever the road may take you, with an all-in-one device that enhances your mobile computing experience - the ultra-portable MyDigitalSSD BP5 SuperSpeed USB 3.0 external SSD.

Features

  • Sleek and compact size: 112.5mm x 47mm x 10.5mm
  • Integrated USB 3.0 cable
  • 4 interchangeable rubber sleeves for added protection and grip (Black, Blue, Red & Pink)
  • Real SSD performance: Ability to boot OS from external drive (OS/BIOS support needed.)
  • Plug and Play in Mac OS 10.8 or Windows 8 and up to support USAP mode data transfer.
  • 3-year warranty

Note: Optimum speeds will be had when plugged into a USB 3.0 port with UASP support. Additionally, this device is backwards compatible and can be used in a USB 2.0 port at USB 2.0 transfer rates.

WARNING: The MyDigitalSSD BP5 enclosure/casing is not for use with other brand SSDs. MyDigitalSSD takes no responsibility or liability for any damages caused by using another brand SSD in this device. Removing or replacing the installed SSD in this device will void the MyDigitalSSD product warranty.

MyDigitalSSD BP5 SuperSpeed USB 3.0 Ultra Portable External SSD with UASP Support

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Comparison Testing

Head to Head Comparison MyDigitalSSD BP5
Solid State Drive
External 2.5"
Hard Disk Drive
Sustained Read/Write Speeds 465/450 MB/s 100/100 MB/s
Random 4K Small File Read/Write Speeds 25/45 MB/s 0.8 x 0.4 MB/s
Size 112.5 x 47 x 10.5 mm 130 x 80 x 16 mm
Weight 1.5 oz 7 oz
Integrated USB 3.0 Cable Yes No
Pocket Sized Yes No
Smoothly Runs OS, Programs, Apps, Games & Media Yes No
File Backup and Storage Yes Yes
* Comparison data based on the average characteristics of a standard external 5400RPM 2.5 inch hard disk drive.

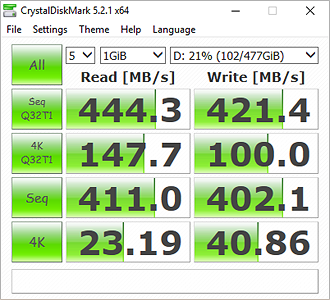

Performance Testing

Test Environment: USB 3.1 port on ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 7 Ultimate 64GB / Driver UASPStor

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

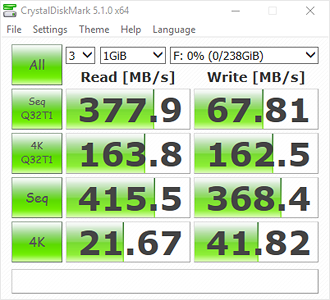

256GB

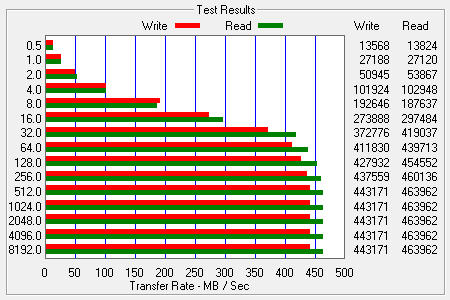

CrystalDiskMark Bench Results     ATTO Bench Results

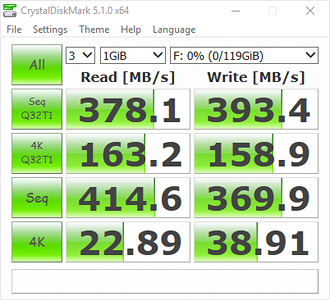

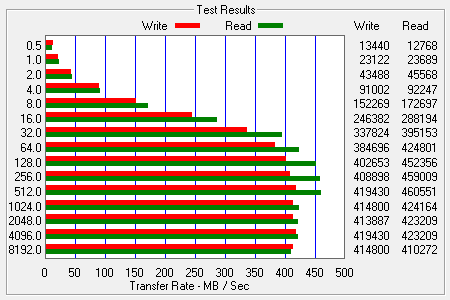

128GB

CrystalDiskMark Bench Results     ATTO Bench Results

Specifications

Capacity : SKU
128GB : MDM2-BP5-0128
256GB : MDM2-BP5-0256
512GB : MDM2-BP5-0512
Interface: USB 3.0 with UASP support
NAND Flash: Toshiba TLC Toggle NAND
Controller: Phison S11 SATA 6G Controller
Interface Transfer Rate: USB 3.0: 5Gbps
USB 2.0: 480 Mbps
Sustained Read: 465MB/s (ATTO)
Sustained Write: 450MB/s (ATTO)
Random 4K Read: 25MB/s (Crystal)
Random 4K Write: 45MB/s (Crystal)
Operation Temperature: 0°C ~ +70°C
Input Voltage 5V ± 5%
Power Consumption Active: <= 3.0W (Typical)
Power Consumption Idle: <=1.65W
ECC Recovery: 72bit / 1KB
MTBF: 2,000,000 hours
SSD Case/Housing: Plastic
Case Design: Silver brushed aluminum
Dimensions: 112.5mm x 47mm x 10.5mm
Weight: 1.5 oz
USB 3.0 UASP Mode: Windows 10 / 8.1 / 8
Mac OS X 10.8
USB 3.0 Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP
Mac OS X 10.8
USB 2.0 Support: Windows 2000 and above
Mac OS 10.x
Linux
Compliance: RoHS / CE / FCC
Package Contents: BP5 SuperSpeed USB 3.0 SSD
4 Rubber SSD Sleeves
Warranty: 3 Year

Return to top

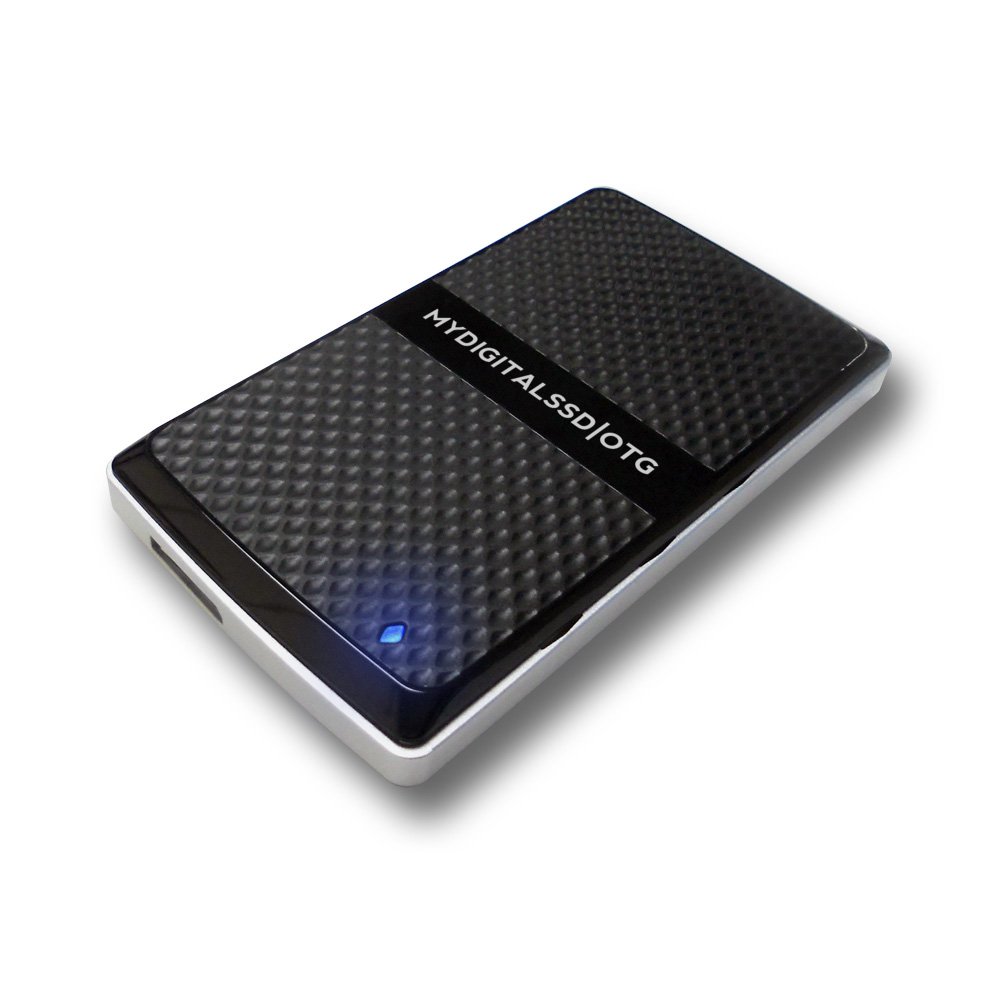

MyDigitalSSD OTG SuperSpeed USB 3.0 mSSD - UASP Compliant

Details

MyDigitalSSD OTG Mini SSD | SuperSpeed USB 3.0 with UASP | External Solid State Drive

MyDigitalSSD is proud to introduce the first device that finally lives up to the USB3.0 SSD hype, the OTG USB 3.0 Mini Solid State Drive (mSSD).

The OTG mSSD is an ultra portable plug and play drive that offers total USB 3.0 5Gbps performance with any USB Attached SCSI Protocol (UASP) compliant system resulting in real SSD speeds up to 465MB/s.

This pocket-sized wonder reduces wait times and maximizes bandwidth utilization, enabling faster and more efficient transfers while helping lower CPU utilization for extended battery life for on-the-go users.

With 4 times the speed of a traditional hard drive, users can run operating systems, play games, stream media, and utilize programs directly from your OTG mSSD! Comparatively, with this power, the OTG would be rated 3000x if it were a flash drive.

Unsure if your system is UASP compliant?

The OTG mSSD guarantees complete compatibility with all USB devices. USB 3.0 users will see blazing speeds up to 210MB/s and USB2.0 users up to 38MB/s.

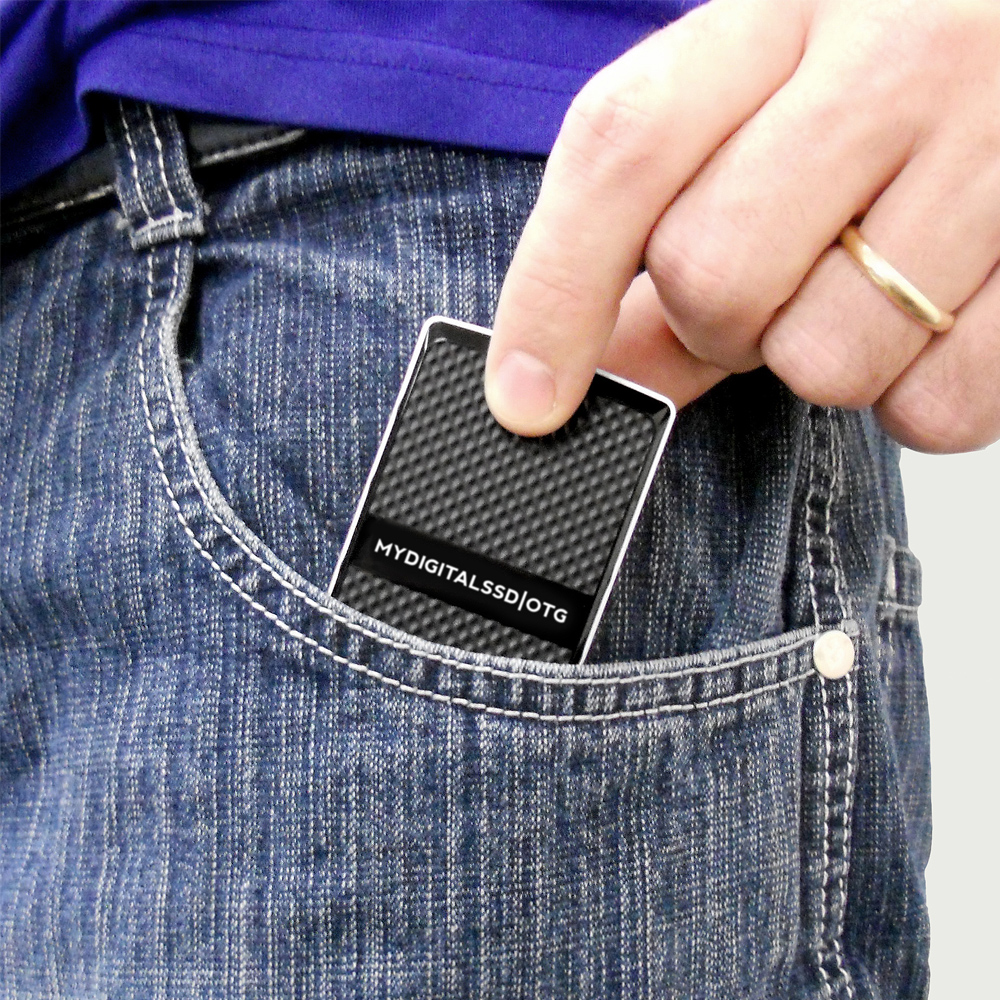

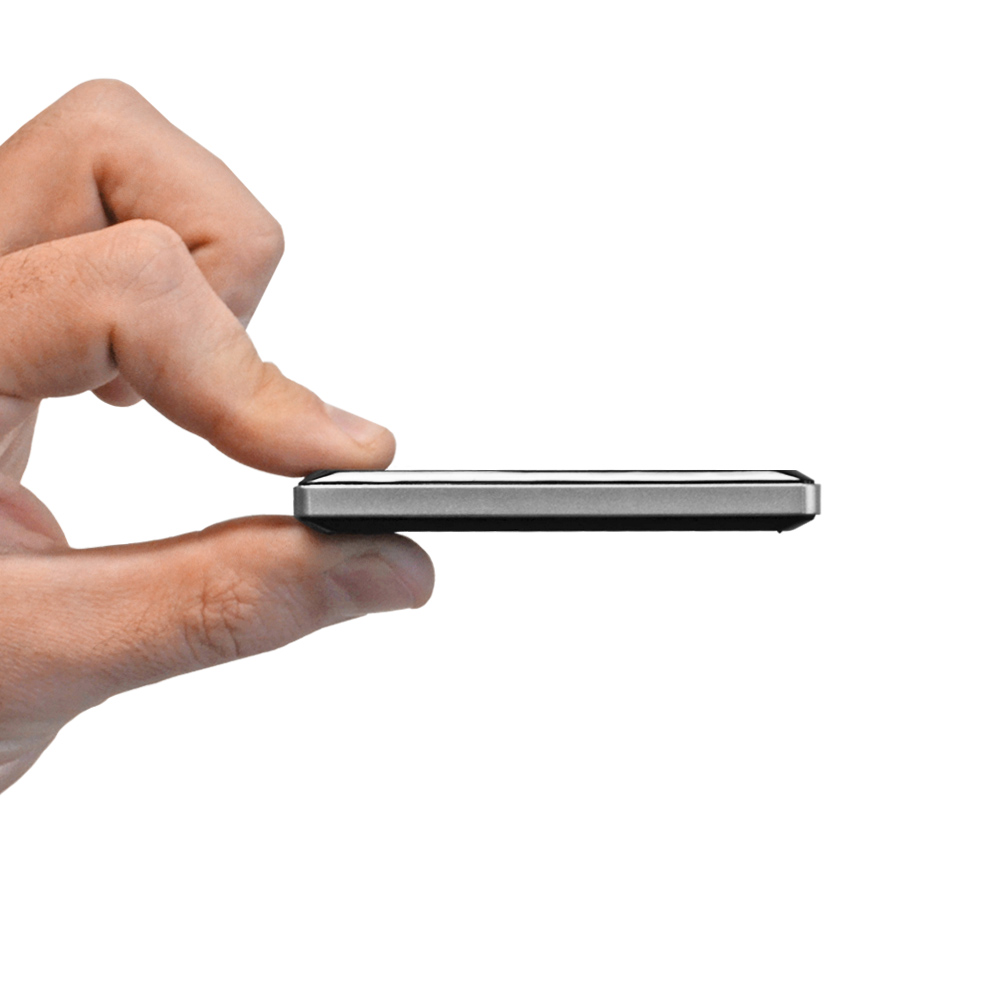

Small, Light and Ultra Mobile

Detachable Type B USB 3.0 cable keeps this 1 ounce device smaller than a business card for maximum mobility, roughly 1/4th the size of most external 2.5" hard drives or SSDs that weigh 8 ounces or more.

Whether you're in the field on assignment, on vacation, or sharing with a friend, this versatile plug and play device makes transferring files hassle free by being compatible with both USB 3.0 and USB 2.0 ports on PC, Mac, and Linux operating systems.

Real SSD Speed

UASP Compliant for maximum SSD and USB 3.0 Speeds - up to 50 times faster than an HDD (random 4K). Run operating systems, games, media, programs, and more directly from your OTG mSSD.

Safe and Secure Storage

Eliminate worry  about the safety of your files with thanks to SSD technology combined with a tough outer case designed to withstand the day-to-day bumps, shakes, and drops that come with on-the-go computing without data loss.*

Silently Save Energy

With no moving parts, the OTG mSSD uses a fraction of the power than that of a spinning hard drive, extending the battery life of mobile devices like today's popular notebooks and tablets.

* Please note, the OTG mSSD is not crushproof or waterproof.

MyDigitalSSD OTG USB 3.0 Mobile SSD

Where to Buy*

Buy this product at RAM City

Australia

Buy this product at Prime ABGB

India

Buy this product at Reposit

Netherlands

* Reseller prices may vary.

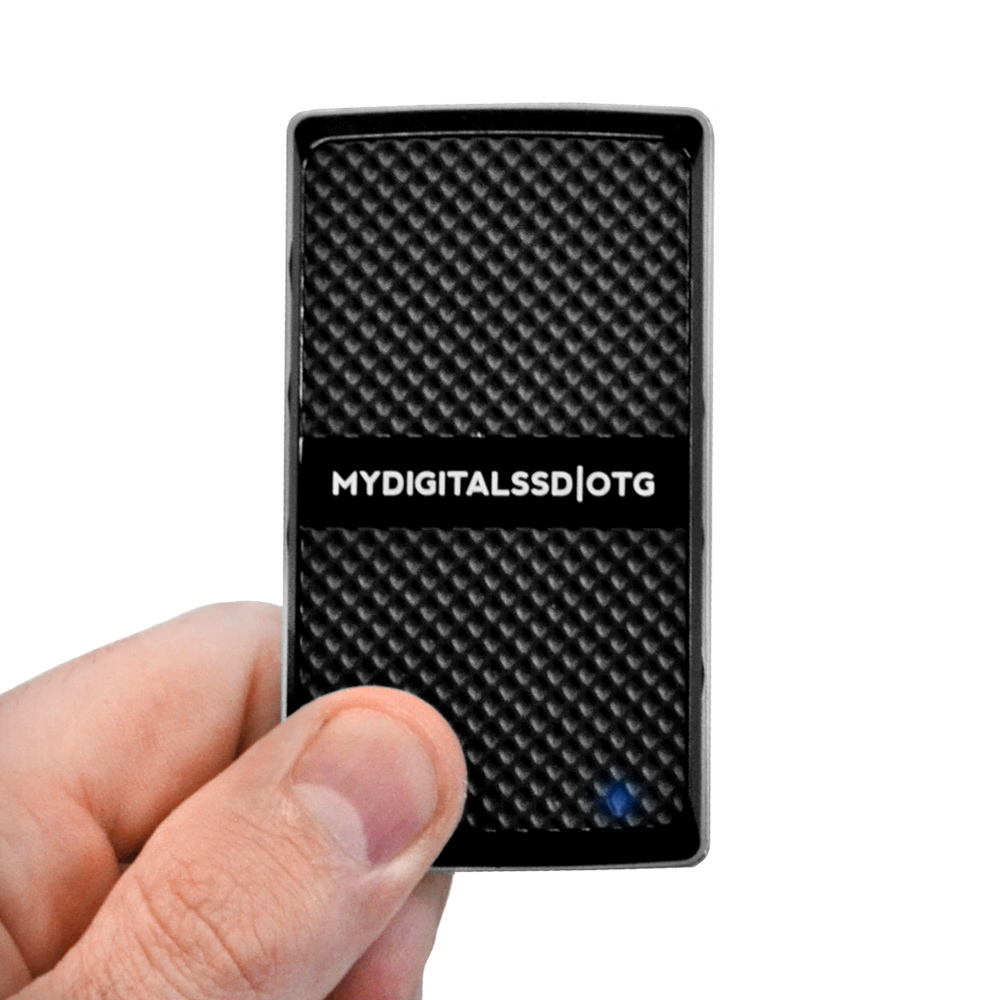

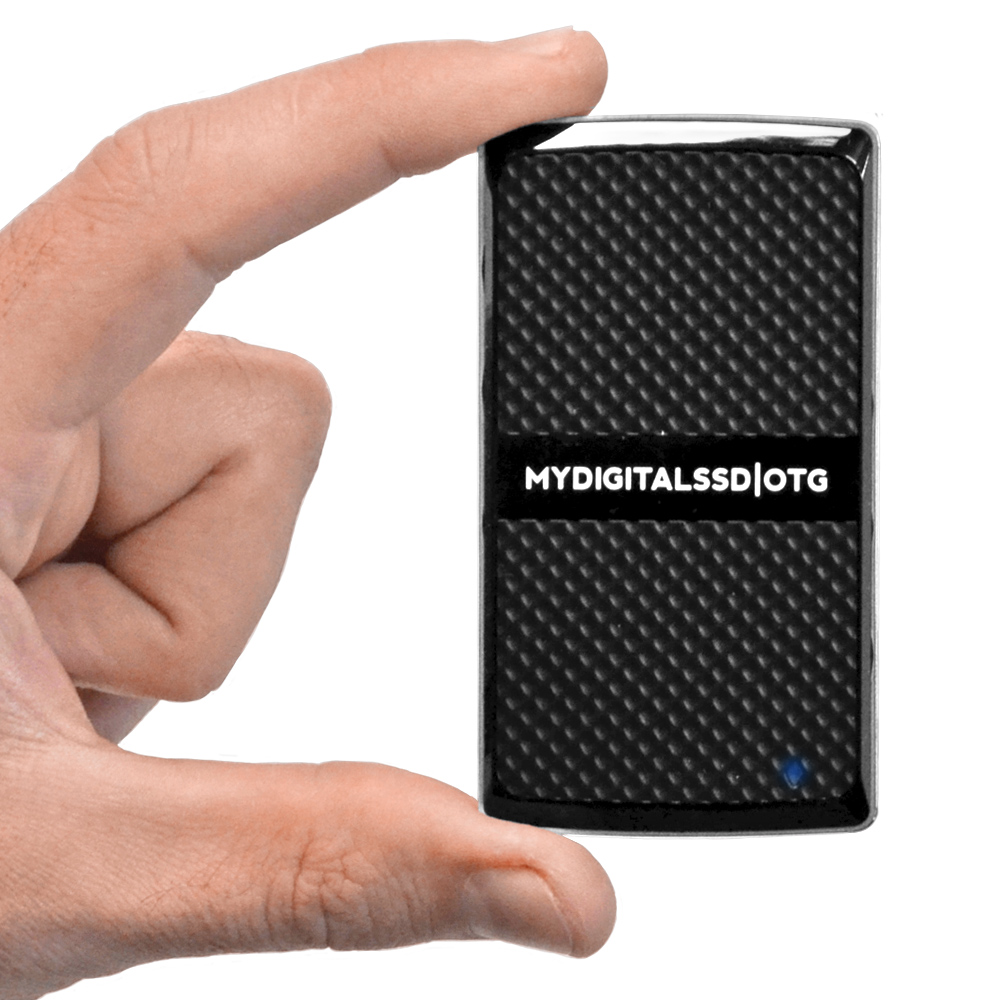

Product Photos



Product Demo

"We are throwing around gigabyte files here like they were notepad files, its ridiculous."
- Steve "Chippy" Paine, Owner of Ultrabook News, UMPCPortal, and Carrypad

Performance Testing

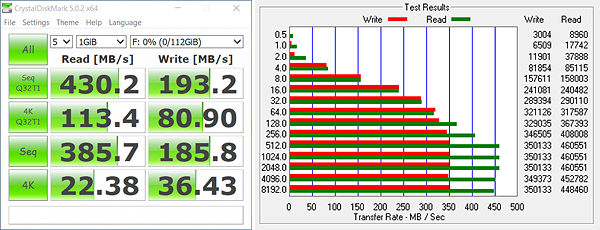

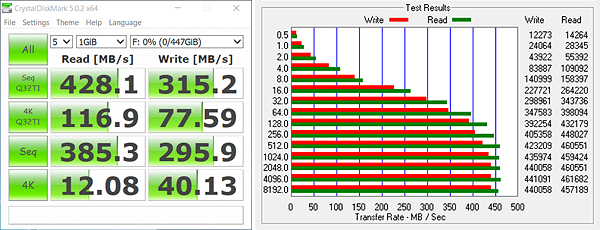

Test Programs: CrystalDiskMark, ATTO

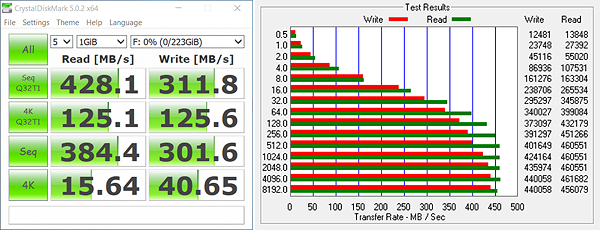

UASP Compliant USB 3.0 Port
Test PC: Lenovo IdeaPad Y510p, 2.4 GHz Intel Core i7-4700MQ, 8 GB DDR3, Windows 8 64-bit, NVIDIA GeForce GT750M with 1TB HDD and open M.2 slot

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

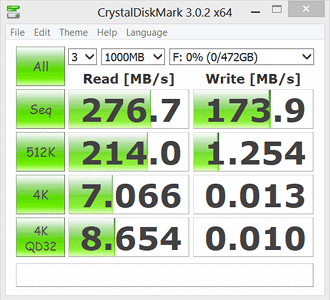

512GB

256GB

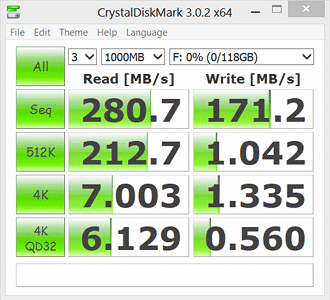

128GB

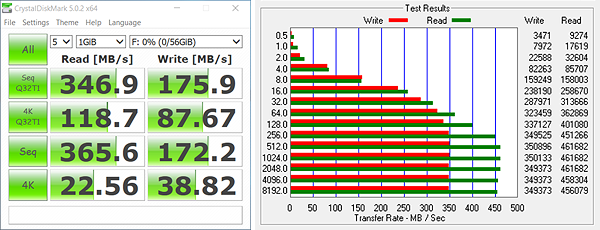

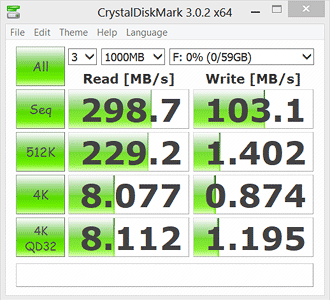

64GB

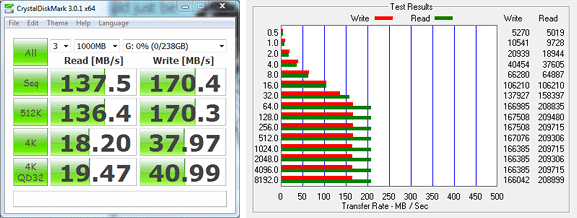

USB 3.0 Port
Custom Build Desktop PC: Asus P6T SE Motherboard Intel Core i7 930 Processor 2.8GHz MyDigitalSSD 256GB Smart mSATA with mSATA to SATA converter 8GB DDR3 RAM Windows 7 Ultimate 64-bit Asus U3S6 USB 3.0 PCIe Expansion Card

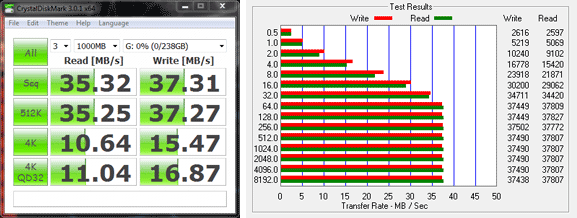

USB 2.0 Port
Custom Build Desktop PC: Asus P6T SE Motherboard Intel Core i7 930 Processor 2.8GHz MyDigitalSSD 256GB Smart mSATA with mSATA to SATA converter 8GB DDR3 RAM Windows 7 Ultimate 64-bit Asus U3S6 USB 3.0 PCIe Expansion Card

Reviews & Awards

Specifications

Capacity : SKU
64GB : MDMS-OTG-064
128GB : MDMS-OTG-128
256GB : MDMS-OTG-256
512GB : MDMS-OTG-512
Interface: USB 3.0 with UASP support
NAND Flash: Micron MLC Sync NAND Flash
Controller: 64GB/128GB: Phison S9 SATA 6G Controller
256GB: Phison S8 SATA 6G Controller
Interface Transfer Rate: USB 3.0: 5Gbps
USB 2.0: 480 Mbps
Sustained Read: 64GB: 460MB/s (ATTO)
128GB/256GB: 465MB/s (ATTO)
Sustained Write: 64GB: 440MB/s (ATTO)
128GB/256GB: 450MB/s (ATTO)
Random 4K Read: 64GB: 15MB/s (Crystal)
128GB/256GB: 13MB/s (Crystal)
Random 4K Write: 64GB: 30MB/s (Crystal)
128GB/256GB: 34MB/s (Crystal)
Operation Temperature: 0°C ~ +70°C
Input Voltage 5V ± 5%
Power Consumption Active: <= 3.0W (Typical)
Power Consumption Idle: <=1.65W
ECC Recovery: 72bit / 1KB
MTBF: 2,000,000 hours
SSD Case/Housing: Plastic
Case Design: Black with silver trim
Dimensions: 87mm x 48mm x 10mm
Weight: 1.2 oz (without cable)
USB 3.0 UASP Mode: Windows 10 / 8.1 / 8
Mac OS X 10.8
USB 3.0 Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP
Mac OS X 10.8
USB 2.0 Support: Windows 2000 and above
Mac OS 10.x
Linux
Compliance: RoHS / CE / FCC

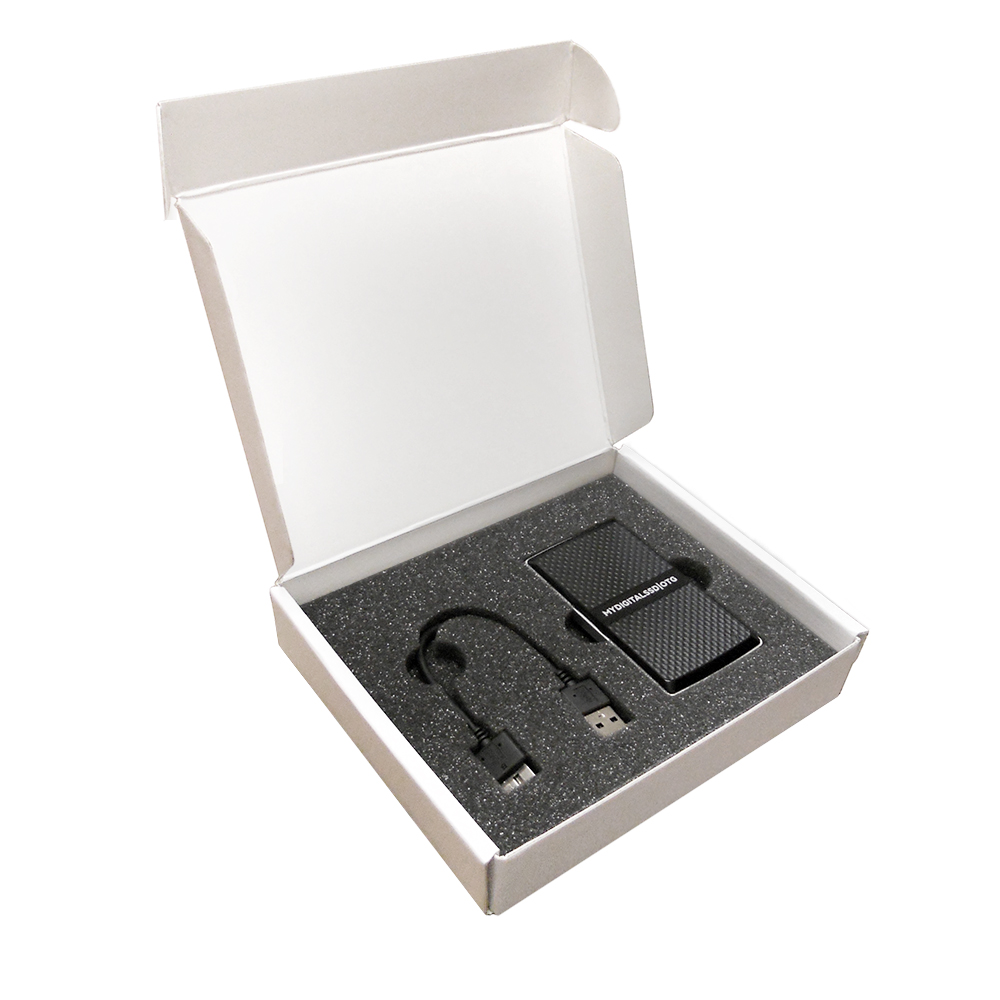

Package Contents: MyDigitalSSD OTG USB 3.0 mSSD
6 inch USB 3.0 Cable
Warranty: 3 Year

Return to top



MyDigitalSSD Pocket Vault SuperSpeed USB 3.0 Portable External SSD

Details

Pocket Vault  |  SuperSpeed USB 3.0  |  USB 2.0 Compatible  |  External SSD

The least expensive high capacity flash drive / mobile SSD on the market today!

The MyDigitalSSD Pocket Vault is an external SuperSpeed USB 3.0 solid state drive (SSD) that will change the way you think about on-the-go storage. This ultra portable device allows users to securely transport files, of all types and sizes, at speeds that noticeably outperforms other devices of it's kind. Designed for an active lifestyle and safe data transportation, the Pocket Vault eliminates the burden of carefully handling traditional portable hard drives (HDDs) thanks to SSD durability and shock resistance.

Never worry about space again with storage capacities ranging from 64GB to 1TB. The Pocket Vault makes it possible to have all of your data (photos, music, videos, documents, and important PC or Mac Recovery/Backup files) right at your fingertips, wherever you may be.

Key Features

  • R/W speeds up to 240/170MB/s
  • Lightweight pocket sized SSD
  • Supports USB 3.0 interfaces - Up to 10X faster than USB 2.0
  • Backward compatible with USB 2.0 ports
  • PHISON PS2251-01 (BGA289) flash controller
  • Contains up to 16 pieces of MLC Toggle NAND flash
  • Supports In-System programming through USB port
  • Supports up to 4 Channels with Interleave
  • Compatible with PC, Mac & Linux operating systems

USB 3.0 SuperSpeed
Forget high-speed USB 2.0, treat yourself to SuperSpeed and save time! The Pocket Vault can transfer 1GB of data in under 4 seconds via any USB 3.0 port.

Ultra Portable
A hair wider than a business card, the Pocket Vault makes for a great travel companion. Whether you're in the field on assignment, on vacation, or sharing with a friend, this versatile plug and play device makes transferring files hassle free by being compatible with both USB 3.0 and USB 2.0 ports on PC, Mac, and Linux operating systems.

Durable & Shock Resistant
Unlike traditional mobile hard drives, the Pocket Vault has no moving parts and utilizes solid state technology designed to better deal with the extreme conditions of on-the-go mobile computing without data loss.*

Backup Storage & Security
The Pocket Vault offers storage capacities up to 1TB for archiving data of all types and sizes. Combined with TrueCrypt free software, owners can easily password protect files and essentially lock their drive down for safekeeping.

* Please note, the Pocket Vault is not crushproof or waterproof.

MyDigitalSSD Pocket Vault USB 3.0 Mobile SSD

Where to Buy*

Buy this product at MyDigitalDiscount.com

USA

Buy this product at Newegg

USA

Buy this product at Voitech.com.au

Australia

Buy this product at OnlySSD

India

Buy this product at Prime ABGB

India

* Reseller prices may vary.

Performance Testing

Test program: CrystalDiskMark

UASP Compliant USB 3.0 Port
Test PC: Lenovo IdeaPad Y510p, 2.4 GHz Intel Core i7-4700MQ, 8 GB DDR3, Windows 8 64-bit, NVIDIA GeForce GT750M with 1TB HDD and open M.2 slot

64GB

128GB

256GB

512GB

Comparing the Pocket Vault USB 3.0 SSD vs. Lexar USB 3.0 Flash Drive vs. PNY USB 2.0 Flash Drive

  Pocket Vault SSD
(MB/s)
Lexar S33 USB 3.0 (MB/s) PNY Attaché
USB 2.0
 (MB/s)
Read: 280 115.1 27.9
Write: 100 49.2 8.8

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

Reviews & Awards

Specifications

Capacity : SKU
64GB : MDSSD-0064G-PV
128GB : MDSSD-0128G-PV
256GB : MDSSD-0256G-PV
512GB : MDSSD-0512G-PV
1TB : MDSSD-1TB-PV
Interface: Serial ATA: SATA III (6G)
NAND Flash: MLC Toggle Flash
Controller: PHISON PS2251-01 (BGA289)
Read Rate: 64GB: Up to 300MB/s
Others: Up to 280MB/s
Write Rate: 64GB: Up to 100MB/s
Others: Up to 175MB/s
Operation Temperature: 0°C ~ +70°C
Dimensions: 93 x 53 x 8 mm
Input Voltage 5V ± 5%
Power Consumption Active: <= 3.0W (Typical)
Power Consumption Idle: <=1.65W
ECC Recovery: 68 its per 1KB
MTBF: 2,000,000 hours
SSD Case/Housing: Lightweight plastic
Case Design: Hairline
Weight: < 6g
OS Support
Including but not limited to:
Windows 10 / 8.1 / 8 / 7 / Vista / XP / CE
Mac OS X
Linux Fedora / Ubuntu / Solaris / etc.
DOS
Compliance: RoHS / CE / FCC
Package Contents PocketVault USB 3.0 SSD
6 inch USB 3.0 Cable
Warranty: 1 Year

Return to top



MyDigitalSSD BP4 SuperSpeed USB 3.0 Portable External SSD

Details

Bullet Proof 4 | BP4 | SuperSpeed USB 3.0 | External SSD | UASP Support

This ultra-portable MyDigitalSSD Bullet Proof 4 (BP4) solid state drive combines the award winning BP4 SATA III/6G mSATA SSD and BP4 SuperSpeed USB 3.0 mSATA enclosure adapter to create an external storage solution for on-the-go users, who require the performance and durability synonymous with Bullet Proof SSDs, to share files between various PC and Mac systems.

BP4 USB 3.0 drives are backwards compatible for use with virtually any Notebook, Ultrabook, Desktop, or other devices that have a USB port - limited only by the allowance of the port.

BP4 drives offer SATA III/6G speeds up to 200MB/s coupled with extended performance endurance to eliminate sluggishness as the drive fills with data; all in a lightweight mobile device that's smaller than a business card proving big things do come in small packages.

Highlights

  • Unequaled price to performance
  • Large storage capacity
  • Slim and stylish silver design and black trim
  • Compliant to USB 3.0 specifications
  • Compliant to USB 2.0 specifications
  • ASMedia 1053E USB 3.0 Controller with UASP Support
  • A19nm Toshiba Toggle NAND Flash
  • Improved boot up and application load times
  • High-speed SATA 6Gb/s (SATA III) interface
  • Backward compatible to SATA 3Gb/s (SATA II)
  • Withstand extreme shock and vibration
  • Support DDR3 I/O interface
  • Power management supported
  • NCQ command set
  • TRIM support
  • RAID support
  • SMART support
  • Plug and Play (PnP) technology
  • Hot-swappable device
  • Upgradeable with any 50mm mSATA SSD

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.

MyDigitalSSD BP4 USB 3.0 Mobile SSD

About the Controller

MyDigitalSSD BP4 SSDs feature the Phison S-Module III S8 controller to deliver all the advantages of Flash Disk technology with the Serial ATA III interface, fully compliant with standard mSATA form factor. The S-Module III S8 is based on the mSATA form factor which is generated by JEDEC, designed to operate at a maximum operating frequency of 300MHz with 40MHz external crystal.

The S8 can reach 500MB/s throughput based on ONFI/Toggle NAND (with DDR3 cache enabled and measured by CrystalDiskMark) with markedly lower power consumption than that of traditional Hard Drives and even most new SSDs, making it the perfect solution for mobile computing.

USB Attached SCSI Protocol (UASP) Technology

UAS is a computer protocol used to move data to and from USB storage devices. Systems that support UAS will see better results due to the capabilities listed below.Without UAS, USB 3.0 R/W speeds will still reach 190/160.

UAS Capabilities

  • Maximizes bus utilization through the use of streams in USB 3.0
  • Provides a modest increase in bus utilization in USB 2.0
  • Provides a mechanism for the device to store several commands and optimize the use of its media
  • Complies with current command and transport standards
  • Eliminates much of the round trip time between command phases - Hidden behind queuing
  • Switches the storage driver to a queuing model

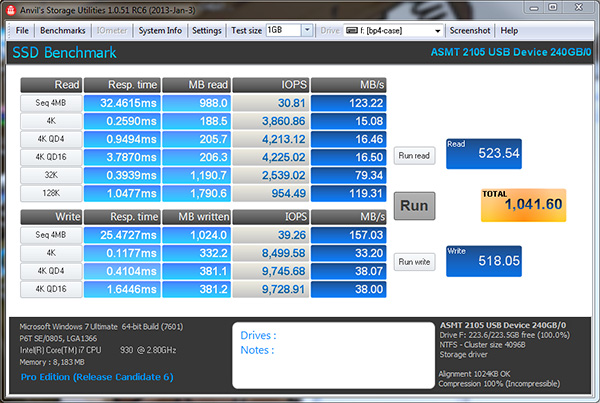

Performance Testing

Test Environment: Standard USB 3.0 Port without UASP

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.





Firmware Updates

Specifications

Capacity : SKU
30GB : MDMS-BP4-USB030
60GB : MDMS-BP4-USB060
120GB : MDMS-BP4-USB120
240GB : MDMS-BP4-USB240
NAND Flash: MLC
Interface: USB 3.0 with UASP support
Compatibility: USB 3.0, USB 2.0
Features: USB 3.0 port, LED
Sequential Read: Up to 200MB/s
Sequential Write: Up to 200MB/s
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
Operation Temperature: 0°C ~ +70°C
Storage Temperature: -40°C ~ +85°C
Input Voltage 5V ± 5%
Power Consumption Active: <= 3.0W (Typical)
Power Consumption Idle: <=1.65W
ECC Recovery: 72bit / 1KB
MTBF: 2,000,000 hours
SSD Case/Housing: Plastic
Color: Silver, Black
Dimensions: 87mm x 48mm x 10mm
Weight: 1.2 oz (without cable)
ECC Scheme: Support up to 72bit ECC correct per 1K Byte data
USB 2.0 Support: Windows 2000 and above
Mac OS 10.x
Linux
USB 3.0 Support: Windows 10 / 8.1 / 8 / 7 / Vista / XP
Mac OS X 10.8
USB 3.0 UASP Mode: Windows 10 / 8.1 / 8
Mac OS X 10.8
Note: Booting feature from Windows/Linux
Compliance: RoHS / CE / FCC
Warranty: 3 Year

Return to top
