PCIe M.2 Solid State Drives

MyDigitalSSD PCI Express (PCIe) M.2 solid state drives are space saving high-speed non-volatile upgrade solutions for today's notebooks, Ultrabooks, NUC mini PCs, All-In-One, and desktop PCs.

Offering sequential read/write speeds over 4X faster than SATA SSDs, MyDigitalSSD PCIe M.2 SSDs are ideal for gamers, enthusiasts, and professionals who demand more from their device in the world of high-end computing.

Note: Solid State Drives DO NOT require defragmentation. It may decrease the lifespan of the drive.


Quick Navigation:  80mm SBX  |  80mm BPX



MyDigitalSSD SBX 80mm (2280) M.2 PCIe Gen3 x2 NVMe SSD

Details

SBX | 80mm (2280) M.2 | PCIe 3.0 x2 NVMe SSD | PHISON E8 Controller

Say hello to GB/s : The Next Evolution of Solid State Drives

The follow-up to MyDigitalSSD's award-winning enterprise BPX NVMe SSDs comes the consumer-grade X-Series NVMe SSD, the SBX!

MyDigitalSSD Super Boot eXpress (SBX) PCIe 3.0 x2 NVMe SSDs are changing the conversation from MB/s to GB/s - unleashing speeds over 3X faster than SATA SSDs with up to 1.6GB sequential read and 1.3GB/s sequential write.

Featuring the robust Phison E8 controller, SBX solid state drives pair TLC 3D NAND with NVMe technology to maximize bandwidth while lowering latency and power consumption for guaranteed peak performance under heavy workloads.

Upgrading to a MyDigitalSSD SBX M.2 SSD offers added flexibility for PC enthusiasts, gamers, and system designers thanks to a thin, single-sided 80mm (2280) form factor that conserves space for other components in today's thinner and lighter devices.

Get the most out of your notebook / Ultrabook / NUC mini PC / All-In-One / desktop workstation; experience GB/s performance today with SBX.

Industry Leading NVM Express® (NVMe) Interface

NVMe (Non-Volatile Media Express) is an SSD storage interface that sheds the burden of legacy AHCI commands for uncompromised performance that saves power even throughout data-intensive workloads over a 3-year period.

With a lower latency than that of today’s traditional hard disk drives and SATA SSDs, SBX drives create a more responsive computing experience.

PCI Express® Gen 3 x2

MyDigitalSSD SBX drives use a 16GB/s dual-lane PCI Express 3.0 (PCIe) interface to get more from your computing experience; delivering exceptional throughput performance and latency for a consumer solid state drive.

SBX PCIe Gen 3 x 2 lane drives are backward compatible with PCIe Gen 2 and Gen 1 interfaces; limited only by each respective bandwidth.

Phison E8 Controller

The Phison E8 (PS5008-E8) controller was designed to provide an improved user experience at a competitive cost, without sacrificing quality. The E8 safeguards data with thermal throttling, end-to-end data path protection, Phison's proprietary StrongECC™ algorithm, and SmartECC™ engine to detect and correct data corruption while sustaining drive performance and low power consumption.

Additionally, the E8 controller offers power loss protection with GuaranteedFlush™ to prevent in-flight data loss from sudden power interruptions, advanced security features including Secure Erase, and support for APST / ASPM / L1.2 power saving modes, a key requirement for next-generation notebooks.

Powerful, Efficient, and Versatile

MyDigitalSSD SBX drives can be used as a boot device in a variety of systems with a free PCIe 2.0/3.0 M.2 socket, including Z97 / X99 / Z170 / Z270 based motherboards, modern notebooks, and small form factor PC's like the Intel® NUC.

They can also serve as added ultra-high-speed storage in virtually any desktop with a spare PCIe slot combined with a PCIe adapter.

Share Your SBX Story

Share your SBX experience with others on Twitter using hashtag: #SBXSSD


MyDigitalSSD SBX 80mm (2280) M.2 PCIe Gen3 x2 NVMe SSD

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

* Reseller prices may vary.

Features

  • Full Storage Capacity
  • Phison E8 (PS5008-E8) Controller
  • 3D TLC NAND Flash
  • NVM Express® 1.2 Interface
  • PCI Express® Gen 3 x2
  • Slim and Easy-to-install M.2 Form Factor
  • Single Sided: 80 x 22 x 2mm
  • Thermal Throttling
  • End-to-End Data Path Protection
  • Built-in Static & Dynamic Wear Leveling
  • Bad Block Management
  • StrongECC™ (SECC)
  • SmartECC™ & SmartECC Refresh Support
  • Power Saving Modes Supported: APST, ASPM, & L1.2
  • Power Loss Protection with GuaranteedFlush™
  • Built-in Voltage Regulators GPIO pins and Built-in UART
  • Secure Erase
  • SMART & TRIM Support
  • Windows, OSX, & Linux Support
  • 5 Year Limited Warranty

Benefits

  • Industry leading price for performance - up to 1.6GB/s sequential read, 1.3GB/s sequential write
  • Outperforms SATA SSDs transfer speeds by over 3X
  • Optimized for gaming with noticeably reduced load times
  • Provides a more responsive user experience for increased productivity
  • Fast application launch and file loading
  • Exceptional workload efficiency
  • Ideal for intensive workloads such as Ultra HD (4K) video creation, CAD, data analysis, and engineering simulations

Performance Testing

Test Environment: MSI Z270 SLI Plus / Intel Core i7-7700K 4.2GHz / 32GB RAM / Windows 10 Pro 64-bit / M.2 Turbo Port. Driver: Samsung NVMe.

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

128GB

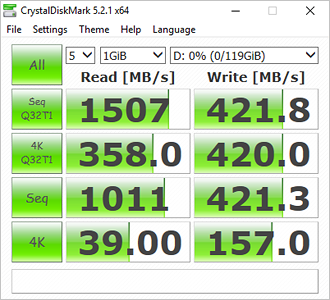

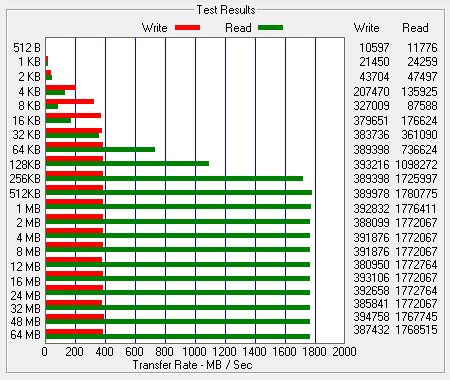

CrystalDiskMark Bench Results     ATTO Bench Results

256GB

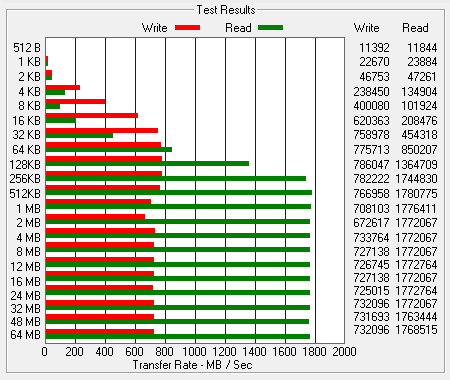

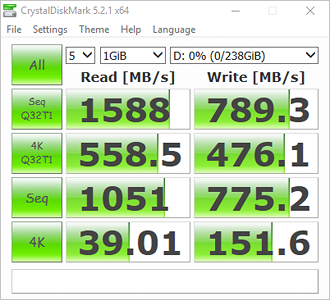

CrystalDiskMark Bench Results     ATTO Bench Results

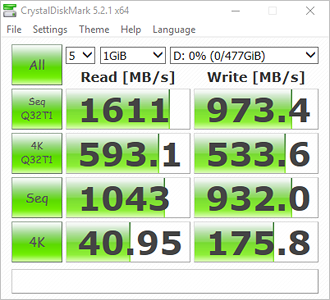

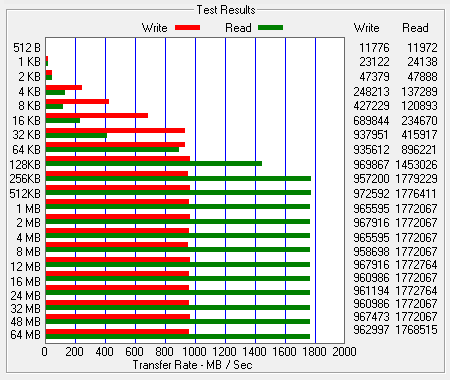

512GB

CrystalDiskMark Bench Results     ATTO Bench Results

1TB

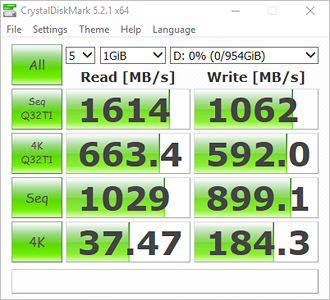

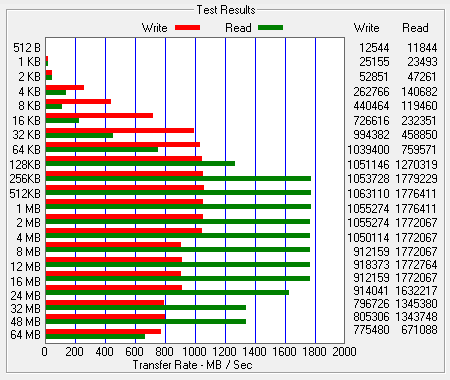

CrystalDiskMark Bench Results     ATTO Bench Results

News, Reviews, & Awards

Resources

Specifications

Capacity : SKU
128GB : MDNVME80-SBX-0128
256GB : MDNVME80-SBX-0256
512GB : MDNVME80-SBX-0512
1TB : MDNVME80-SBX-1T
Form Factor: M.2 2280 (80mm)
Interface: PCIe 3.0 x2
Protocol: NVMe 1.2
Flash: 3D TLC NAND
Controller: Phison E8 (PS5008-E8)
Encryption: TBA
Max Sequential Read: 1.6GB/s / 1,600MB/s
Max Sequential Write: 1.3GB/s / 1,300MB/s
4K Random Read: 240K IOPS
4K Random Write: 180K IOPS
Dimensions: 80mm x 22mm x 3mm
Weight: 8g
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Shock: 1500G/0.5ms
Vibration: 80Hz~2000Hz/20G
Operating Voltage: 3.3V, +/- 5%
Power Consumption: < 5 W
Error Correction Code: StrongECC™
Endurance: 128GB : 120 TBW
256GB : 200 TBW
512GB : 375 TBW
1TB : 800 TBW
RAID Support: TBA
TRIM Support: Yes
SMART Support: Yes
Static & Dynamic Wear Leveling: Yes
Bad Block Management: Yes
ETE Data Path Protection: Yes
Power Savings Modes Support: APST, ASPM, L1.2
Garbage Collection: Automatic
Software: None
Compliance: RoHS, FCC, CE, BSMI
Warranty: 5-year limited warranty up to 800 TBW

Return to top



MyDigitalSSD BPX 80mm (2280) M.2 PCIe Gen3 x4 NVMe SSD

Details

BPX | 80mm (2280) M.2 NGFF | PCIe 3.0 x4 NVMe SSD | PHISON E7 Controller

Say hello to GB/s : The Next Evolution of Solid State Drives

MyDigitalSSD Bullet Proof eXpress (BPX) 80mm (2280) M.2 PCIe 3.0 x4 NVMe SSDs are changing the conversation from MB/s to GB/s - unleashing sequential read/write speeds over 4X faster than SATA SSDs at a blistering 2.6GB (2,600MB/s) and 1.3GB/s (1,300MB/s) respectively.

Featuring the Phison E7 controller, BPX solid state drives use the NVMe interface to maximize bandwidth while lowering latency and power consumption for guaranteed peak performance under the heaviest workloads.

BPX drives empower gamers, enthusiasts, and professionals by opening a new realm of possibilities in the world of high-end computing while also an ideal solution for read-intensive enterprise servers and data center applications. Get the most out of your notebook / Ultrabook / NUC mini PC / All-In-One / desktop workstation; experience GB/s performance today with BPX.

Industry Leading NVM Express® (NVMe) Interface

NVMe (Non-Volatile Media Express) is an SSD storage interface that sheds the burden of legacy AHCI commands for uncompromised performance that saves power even throughout data-intensive workloads over a 5-year period.

With a lower latency than that of today's traditional hard disk drives and SATA SSDs, BPX drives create a more responsive computing experience.

PCI Express® Gen 3 x4

MyDigitalSSD BPX drives use a four-lane PCI Express 3.0 (PCIe) interface to maximize your computing experience; delivering exceptional throughput performance and latency in this client solid state drive.

Built with scalability in mind, BPX drives are backwards compatible with PCIe 2.0 and 1.1; limited only by their respective bandwidths.

PHISON E7 Controller

The PHISON E7 (PS5007-E7) controller is built to safeguard mission-critical data with end-to-end data path protection and a SmartECC™ engine to ensure data integrity during high-speed transfers. It also utilizes firmware algorithms such as SmartFlush™ and an optional P-fail circuitry to prevent in-flight data loss from sudden power interruptions, as well as advanced security features driven with a 256bit AES engine.

Additionally, the E7 controller supports NVMe L1 sub-state with less than 5mW in L1.2 low power mode, a key requirement for next-generation notebooks.

Powerful, Efficient, and Versatile

MyDigitalSSD BPX drives can be used as a boot device in a variety of systems with a free PCIe 2.0/3.0 M.2 socket, including Z97 / X99 / Z170 based motherboards, modern notebooks, and small form factor PC's like the Intel® NUC.

They can also serve as added ultra-high-speed storage in virtually any desktop with a spare PCIe slot combined with a PCIe adapter.


MyDigitalSSD BPX 80mm (2280) M.2 PCIe Gen3 x4 NVMe SSD

Where to Buy*

Buy this product at Amazon.com

USA

Buy this product at MyDigitalDiscount.com

USA

Buy this product at Reposit.eu

Netherlands

* Reseller prices may vary.

Features

  • Phison E7 (PS5007-E7) Controller
  • 2D MLC with 4-plane High-performance NAND
  • NVM Express® 1.2 Interface
  • PCI Express® Gen 3 x4
  • Small and Easy-to-install M.2 Form Factor
  • End-to-End Data Path Protection
  • AES-256 Encryption
  • Power Loss Protection using Intelligent Cache Management
  • Low Power Mode Supports L1.2
  • Built-in Voltage Detector for Power Failure Protection
  • Built-in Voltage Regulators GPIO pins and Built-in UART
  • Hardware ECC (BCH) up to 120bit/2KB
  • Built-in Static and Dynamic Wear Leveling
  • SMART, TRIM, and RAID Support
  • Smart ECC™ - RAID ECC Protection
  • Windows & OSX Support
  • 5 Year Limited Warranty

Benefits

  • Unmatched price for performance - up to 2.6/1.3GB/s sequential read/write
  • Outperforms SATA SSDs transfer speeds by over 4X
  • MyDigitalSSD's fastest gaming SSD that noticeably reduces load times
  • Provides a more immersive user experience for increased productivity
  • Optimized register interface and command set lowers latency
  • Fast application launch and file loading
  • Exceptional workload efficiency
  • Ideal for intensive workloads such as Ultra HD (4K) video creation, CAD, data analysis, and engineering simulations

Performance Testing

Test Environment: ASRock Extreme6/3.1 / Intel Core i7-4790K 4.0GHz / 16GB RAM / Windows 10 Pro 64-bit / Ultra M.2 Slot. Driver: stornvme.

Disclaimer: Results may vary based on computer configuration, environment, and testing methods.

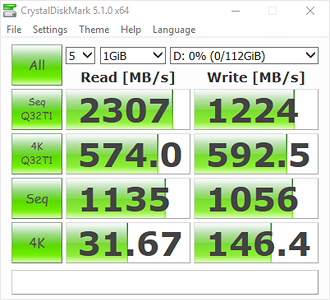

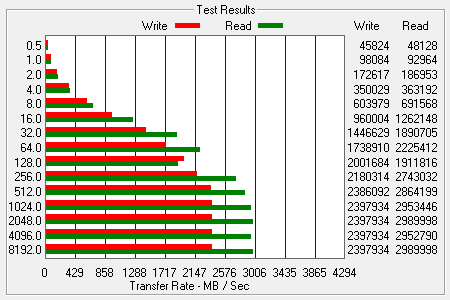

120GB

CrystalDiskMark Bench Results     ATTO Bench Results

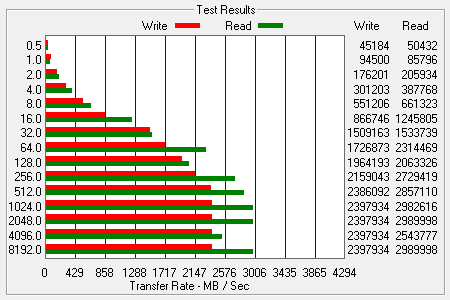

240GB

CrystalDiskMark Bench Results     ATTO Bench Results

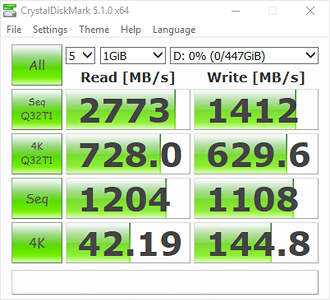

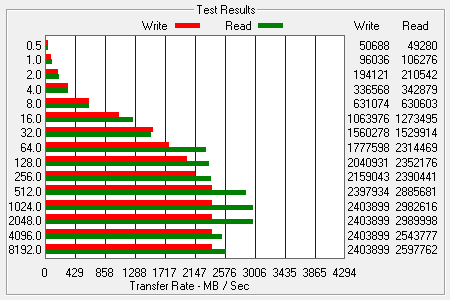

480GB

CrystalDiskMark Bench Results     ATTO Bench Results

Reviews & Awards

Resources

Specifications

Capacity : SKU
120GB : MDNVME80-BPX-0128
240GB : MDNVME80-BPX-0256
480GB : MDNVME80-BPX-0512
960GB : MDNVME80-BPX-1024
Form Factor: M.2 2280 (80mm)
Interface: PCIe 3.0 x4
Protocol: NVMe 1.2
Flash: 2D MLC w/ 4-plane high-performance NAND
Controller: Phison E7 (PS5007-E7)
Encryption: AES 256-bit
Max Sequential Read: 2.6GB/s / 2,600MB/s
Max Sequential Write: 1.3GB/s / 1,300MB/s
4K Random Read: 35MB/s (CDM)
4K Random Write: 150MB/s (CDM)
Dimensions: 80mm x 22mm x 3mm
Weight: 8g
Operation Temperature: 0 to 70°C
Storage Temperature: -40 to 85°C
Shock: 1500G/0.5ms
Vibration: 80Hz~2000Hz/20G
Operating Voltage: 3.3V
Power Consumption: < 7 W
DEVSLP Mode: L1.2 power state supported
Error Correction Code: Supports ECC with 120bits/2KB BCH
Endurance: Up to 1,400 TBW
MTBF: >2,000,000 hours
RAID Support: Yes
TRIM Support: Yes
SMART Support: Yes
Static & Dynamic Wear Leveling: Yes
Bad Block Management: Yes
ETE Data Path Protection: Yes
Low Power Management DIPM/HIPM Mode: Yes
Garbage Collection: Automatic
Device Sleep Mode Support: Yes
Software: None
Compliance: RoHS, FCC, CE, BSMI
Warranty: 5-year limited warranty up to 1,400 TBW
